Tiger XTPS/XTPT ATEX Push Trolley (Single & Twin Bar) – 0.5t-15t WLL
TIG-PT-XTPS-XTPT

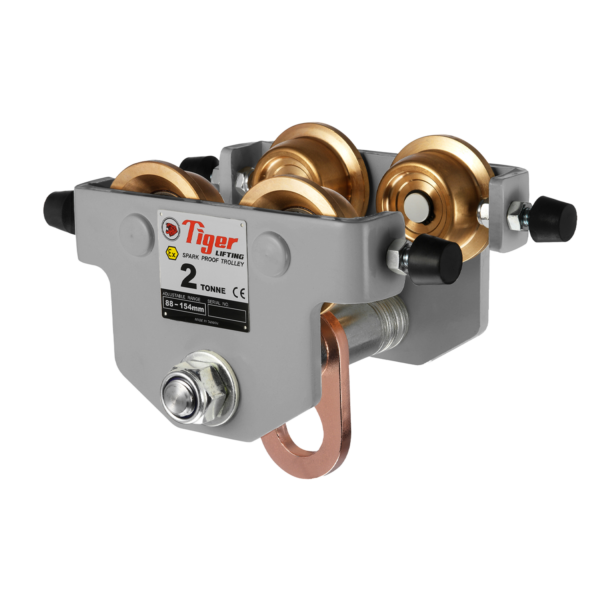

Tiger XTPS/XTPT ATEX spark resistant plain beam trolley (push trolley) from Tiger Lifting, designed for use in hazardous and explosive environments. Available in TPS (single bar) and TPT (twin bar) configurations with capacities from 0.5t to 15t. Features spark resistant components, bronze wheels, anti-drop plates, and ATEX compliance for safe operation in Zones 1, 2, 21, and 22.
From: £733.45£880.14 Exc VATInc VAT
Description
ATEX Spark Resistant Beam Trolley for Hazardous Areas
The Tiger ATEX Spark Resistant Plain Beam Trolley TPS / TPT from Tiger Lifting is specifically designed for safe load movement in explosive atmospheres. Engineered to minimise the risk of ignition, this push travel trolley is fully compliant with ATEX Directive 2014/34/EU, making it suitable for use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) environments.
Ideal for industries such as oil & gas, petrochemical, chemical processing, offshore platforms, and energy production, this explosion proof beam trolley ensures maximum safety without compromising performance.
Spark Resistant Construction for Maximum Safety
This ATEX-rated trolley is built using spark resistant materials, including solid bronze trolley wheels and copper-plated components, significantly reducing the risk of sparks caused by friction or impact.
In addition, the trolley features a special corrosion-protected body, ensuring durability in harsh environments where both explosive atmospheres and corrosive conditions may be present. These design elements make it an essential solution for high-risk industrial zones.
Flexible TPS & TPT Configurations
The TPS/TPT range offers versatile configurations to suit different lifting requirements:
- TPS (Single Bar Push Trolley): Lightweight and compact for lighter-duty applications
- TPT (Twin Bar Push Trolley): Designed for heavier loads, providing enhanced stability and improved load distribution
With adjustable beam widths and extended options available, the trolley can be tailored to suit a wide range of beam profiles and installation environments.
Smooth Manual Operation with Reduced Effort
Designed for manual push travel, this trolley enables smooth and controlled horizontal movement of suspended loads. Sealed precision bearings reduce rolling resistance, ensuring easy operation with minimal effort, even when handling heavier loads.
The convex wheel profile eliminates point loading, reducing wear on both the beam flange and trolley wheels. This enhances longevity while maintaining consistent performance in demanding conditions.
Built-In Safety Features for Hazardous Environments
Safety is critical in explosive atmospheres. The Tiger ATEX trolley incorporates anti-drop plates, preventing derailment and protecting the wheels when contacting beam end stops.
A 5:1 safety factor ensures compatibility with both manual and powered hoists, maintaining safe lifting operations under load. An optional beam locking device is available for applications requiring additional load security.
Each unit is supplied with full certification, including a test certificate or EC Declaration of Conformity, confirming compliance with the Machinery Directive 2006/42/EC and ATEX requirements.
Designed for Extreme Conditions
This spark resistant trolley operates within a temperature range of –40°C to +80°C, with optional capability down to –60°C, making it suitable for extreme environments including offshore installations and exposed industrial sites.
Ideal for High-Risk Industrial Applications
The Tiger ATEX TPS/TPT trolley is widely used in industries where explosion protection is critical, including:
- Oil & gas and petrochemical plants
- Chemical processing facilities
- Offshore and marine environments
- Energy and power generation
- Grain handling and dust-prone environments
Its combination of ATEX compliance, robust construction, and smooth operation makes it a vital component in hazardous area lifting systems.
Technical information
| Weight | N/A |
|---|---|
| WLL | 0.5t, 10t, 15t, 1t, 2t, 3t, 5t |
| Beam Width | 106-194mm, 106-310mm, 125-320mm, 150-320mm, 62-128mm, 62-203mm, 87-153mm, 87-230mm, 88-154mm, 88-230mm |
| Configuration | Single Bar, Twin Bar |
Key Features
- ATEX spark resistant plain (push) beam trolley
- Manufactured by Tiger Lifting
- Available in TPS (single bar) and TPT (twin bar) configurations
- Capacity range 0.5 tonne to 15 tonnes
- ATEX Directive 2014/34/EU compliant
- Suitable for Zone 1 & 2 (gas) and Zone 21 & 22 (dust)
- Solid bronze wheels for spark resistance
- Copper-plated components to reduce ignition risk
- Corrosion-protected body for harsh environments
- Sealed bearings for smooth, low-maintenance operation
- Convex wheel profile reduces wear and stress
- Anti-drop plates for enhanced safety
- Compatible with flat and tapered beams
- Optional beam locking device
- Certified to Machinery Directive 2006/42/EC
- Operating temperature –40°C to +80°C (–60°C optional)
- 5:1 safety factor
Safety & User Instructions
- Ensure the trolley is correctly installed and adjusted to the beam before use.
- Confirm the equipment is suitable for the designated ATEX zone classification.
- Inspect wheels, bearings, and spark resistant components regularly.
- Do not exceed the rated working load limit.
- Avoid shock loading or sudden impacts.
- Ensure beam end stops are installed.
- Never use for lifting personnel.
- Follow all ATEX regulations and lifting safety standards.
