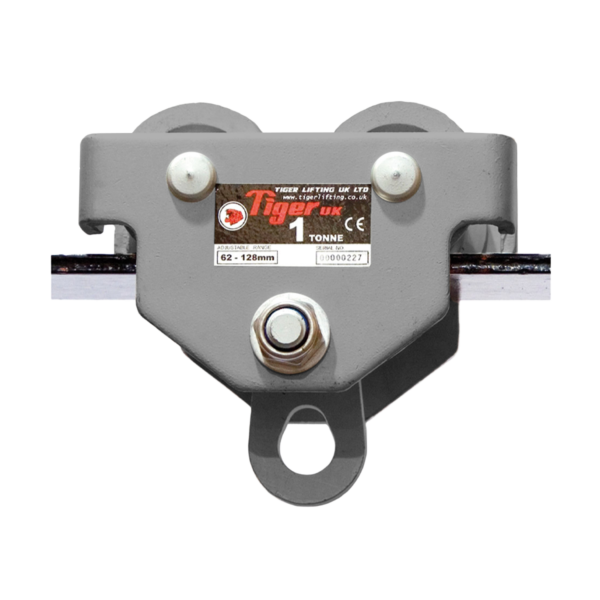

Tiger TPS/TPT Plain/Push Trolley (Corrosion Resistant) – 0.5t-15t WLL

Description

Corrosion Resistant Beam Trolley for Harsh Environments

The Tiger Corrosion Resistant Plain Beam Trolley TPS / TPT from Tiger Lifting is specifically engineered for lifting operations in aggressive, wet, or corrosive environments. Designed to deliver the same high performance as the standard range, this enhanced version incorporates specialist protective finishes and stainless steel components to ensure long-term reliability where standard trolleys may fail.

Ideal for industries such as marine, offshore, wastewater treatment, chemical processing, and outdoor construction, this corrosion resistant push trolley ensures dependable performance even in the toughest conditions.

Enhanced Protection for Long-Term Reliability

This corrosion resistant trolley is manufactured using high-quality stainless steel fittings, including critical load-bearing and moving components. These materials provide excellent resistance to rust, corrosion, and environmental degradation.

In addition, the trolley is finished with a premium-grade protective coating, offering superior resistance to moisture, chemicals, and impact damage. This combination significantly extends product lifespan while maintaining structural integrity and appearance over time.

Flexible Configurations for Versatile Applications

Available in two configurations, the TPS/TPT range ensures flexibility for a wide range of lifting requirements:

TPS (Single Bar Trolley): Compact and lightweight, ideal for lighter to medium-duty applications
TPT (Twin Bar Trolley): Designed for heavier loads, offering increased stability and improved load distribution

With beam width adjustability and extended beam options available, the trolley can be configured to suit various structural setups, making it suitable for both permanent and temporary installations.

Smooth and Efficient Load Movement

The trolley is designed for manual push travel, allowing operators to move suspended loads smoothly along overhead beams. Sealed precision bearings ensure low rolling resistance, enabling effortless movement while reducing maintenance requirements.

The convex wheel profile minimises point loading, protecting both the beam flange and trolley wheels from excessive wear. Combined with universal wheel design, the trolley operates efficiently on both flat and tapered beams.

Built-In Safety for Demanding Applications

Safety is critical in corrosive environments, and the Tiger trolley is engineered accordingly. Each unit includes anti-drop plates, preventing derailment and protecting wheels from damage when contacting beam stops.

A 5:1 safety factor ensures compatibility with both manual and powered hoists, while maintaining a high margin of safety during operation. An optional beam locking device is also available for applications requiring additional load stability.

All units are supplied fully certified, including a test certificate or EC Declaration of Conformity, confirming compliance with the Machinery Directive 2006/42/EC.

Designed for Extreme Conditions

The corrosion resistant TPS/TPT trolley is suitable for operation in temperatures ranging from –40°C to +80°C, with an optional extended range down to –60°C. This makes it ideal for use in cold storage facilities, offshore platforms, and exposed outdoor environments.

Safety & User Instructions
Ensure the trolley is correctly fitted and securely adjusted to the beam before use.
Confirm beam suitability and load capacity prior to operation.
Regularly inspect stainless steel components and protective coatings for wear or damage.
Do not exceed the rated working load limit.
Avoid shock loading or sudden impacts.
Ensure beam end stops are installed.
Never use for lifting personnel.
Follow all relevant lifting safety standards and inspection schedules.

Key Features
Corrosion resistant plain (push) beam trolley
Manufactured by Tiger Lifting
Available in TPS (single bar) and TPT (twin bar) configurations
Capacity range 0.5 tonne to 15 tonnes
Stainless steel components for superior corrosion resistance
Enhanced protective coating for harsh environments
Sealed bearings for smooth, low-maintenance operation
Convex wheel profile reduces wear and beam stress
Anti-drop plates for increased safety
Compatible with flat and tapered beams
Optional beam locking device
Certified to Machinery Directive 2006/42/EC
Operating temperature –40°C to +80°C (–60°C optional)
5:1 safety factor
