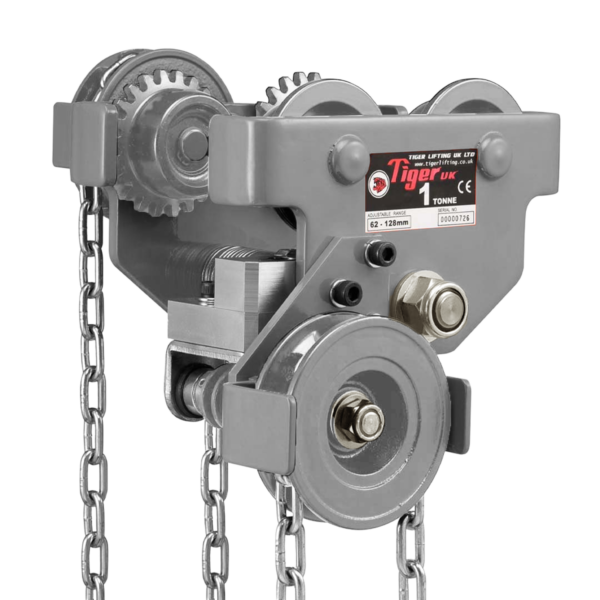

Tiger TGS/TGT Geared Trolley (Corrosion Resistant) – 0.5t-35t WLL

Description

Corrosion Resistant Geared Trolley for Harsh & Marine Environments

The Tiger Corrosion Resistant Geared Beam Trolley TGS / TGT from Tiger Lifting is engineered for precision load control in aggressive and corrosive environments. Built to perform where standard trolleys may deteriorate, this enhanced version incorporates stainless steel components and advanced protective finishes, ensuring reliable long-term operation in challenging conditions.

Ideal for marine, offshore, wastewater, chemical processing, and outdoor industrial applications, this corrosion resistant geared trolley delivers both durability and precise load positioning.

Enhanced Protection with Stainless Steel Components

Critical components, including gearing elements, fixings, and load-bearing parts, are manufactured using high-grade stainless steel, providing superior resistance to corrosion, rust, and environmental wear.

The trolley is further protected by a high-performance corrosion-resistant coating, offering additional defence against moisture, chemicals, and impact damage. This combination ensures extended service life and reduced maintenance costs, even in the harshest operating environments.

Precision Geared Travel for Controlled Load Handling

The TGS/TGT trolley features a hand chain drive mechanism, allowing operators to move loads smoothly and precisely along a beam without manual pushing. This is particularly beneficial when:

Handling heavy loads requiring accurate positioning
Operating in confined or hazardous environments
Improving operator safety and reducing manual effort

The system provides consistent and controlled travel, making it ideal for demanding lifting applications.

Flexible Configurations for All Load Requirements

The corrosion resistant range is available in two configurations:

TGS (Single Bar Geared Trolley): Compact and efficient for lighter to medium-duty use
TGT (Twin Bar Geared Trolley): Designed for higher capacities, offering enhanced stability and load distribution

With adjustable beam widths and extended configuration options available, the trolley can be tailored to suit a wide variety of structural installations.

Smooth Operation with Minimal Maintenance

The trolley is fitted with sealed precision bearings, ensuring smooth rolling performance with reduced friction and minimal maintenance requirements. The convex wheel profile eliminates point loading, reducing wear on both the beam and wheels.

Combined with universal wheel design, the trolley operates seamlessly on flat and tapered beam flanges, maximising versatility across different applications.

Built-In Safety for Critical Applications

Safety remains a key focus in demanding environments. Each trolley includes anti-drop plates, preventing derailment and protecting wheels when contacting beam stops.

A 5:1 safety factor ensures safe use with both manual and powered hoists, while an optional beam locking device provides additional load stability during lifting operations.

All units are supplied fully certified, including a test certificate or EC Declaration of Conformity, confirming compliance with the Machinery Directive 2006/42/EC.

Designed for Extreme Operating Conditions

The corrosion resistant TGS/TGT trolley operates within a temperature range of –40°C to +80°C, with an optional extension to –60°C, making it suitable for cold storage, offshore, and exposed environments.

Safety & User Instructions
Ensure the trolley is correctly installed and securely adjusted to the beam before use.
Operate the hand chain smoothly—avoid shock loading.
Inspect gears, chain, wheels, and stainless steel components regularly.
Do not exceed the rated working load limit.
Ensure beam end stops are installed.
Keep hands and clothing clear of moving parts during operation.
Never use for lifting personnel.
Follow all applicable lifting safety standards and inspection schedules.
Key Features
Corrosion resistant geared beam trolley with hand chain operation
Manufactured by Tiger Lifting
Available in TGS (single bar) and TGT (twin bar) configurations
Capacity range 0.5 tonne to 35 tonnes
Stainless steel components for superior corrosion resistance
High-performance protective coating for harsh environments
Precision geared travel for controlled load positioning
Sealed bearings for smooth, low-maintenance operation
Convex wheel profile reduces wear and stress
Anti-drop plates for enhanced safety
Compatible with flat and tapered beams
Optional beam locking device
Certified to Machinery Directive 2006/42/EC
Operating temperature –40°C to +80°C (–60°C optional)
5:1 safety factor
