Tiger TGS/TGT Geared Trolley (Single & Twin Bar) – 0.5t-35t WLL

Description

Precision Load Control with Geared Beam Trolley System

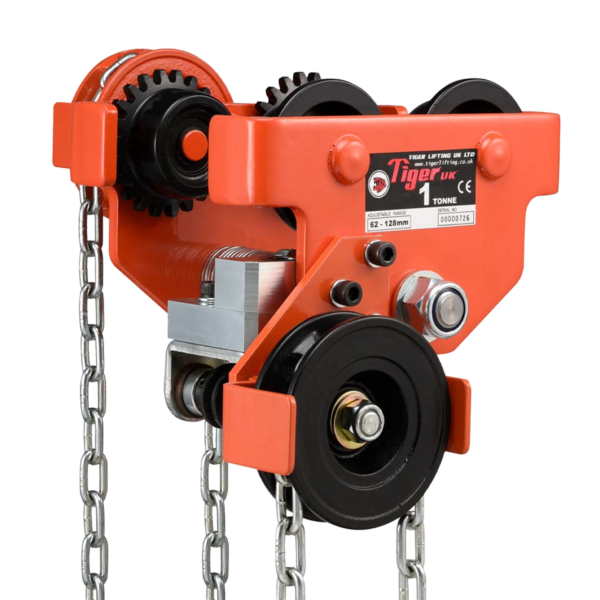

The Tiger TGS / TGT Geared Beam Trolley from Tiger Lifting is engineered for controlled and precise horizontal movement of suspended loads along overhead beams. Designed for professional lifting environments, this hand chain operated trolley allows operators to move heavy loads safely and efficiently, even in demanding conditions.

Available in both single bar (TGS) and twin bar (TGT) configurations, the trolley range supports capacities from 0.5 tonnes up to 35 tonnes, making it suitable for a wide spectrum of industrial, construction, and heavy engineering applications.

Single Bar & Twin Bar Configurations for Versatility

The TGS/TGT range offers flexible configurations to meet different lifting requirements:

TGS (Single Bar Geared Trolley): Compact and efficient, ideal for lighter to medium-duty applications
TGT (Twin Bar Geared Trolley): Designed for higher capacities, delivering increased stability and load distribution for heavy-duty lifting

Extended beam width options are available, allowing the trolley to be customised for specific structural requirements and installation environments.

Smooth Geared Travel with Enhanced Control

Equipped with a hand chain drive system, the TGS/TGT trolley enables smooth, controlled movement of loads, eliminating the need for manual pushing. This makes it particularly effective when handling heavier loads or when precise positioning is essential.

The trolley wheels run on sealed bearings, ensuring low rolling resistance, minimal maintenance, and long service life. Standard hand chain length is 2.5 metres, with bespoke lengths available to suit your application.

Advanced Safety Features for Demanding Applications

Safety is a key feature of the Tiger Geared Trolley range. Each unit includes anti-drop plates, preventing derailment and protecting the wheels when contacting beam end stops.

The convex wheel profile reduces point loading, improving wheel longevity and beam protection. A 5:1 safety factor ensures suitability for use with both manual and powered hoists, delivering safe and reliable performance under load.

An optional beam locking device is available to secure the trolley in position during lifting operations, adding an extra layer of operational safety.

Corrosion Resistant & ATEX Spark Resistant Options

Tiger offers specialised trolley variants for challenging environments:

Corrosion Resistant Trolleys: Featuring stainless steel components and advanced protective coatings for superior durability in harsh or marine environments
Spark Resistant (ATEX) Trolleys: Manufactured in compliance with ATEX Directive 2014/34/EU, suitable for hazardous areas including Zone 1 & 2 (gas) and Zone 21 & 22 (dust)

ATEX-rated models include solid bronze wheels, copper-plated components, and enhanced corrosion protection, ensuring safe use in explosive atmospheres.

Built to International Standards

The TGS/TGT trolley range meets and exceeds BS EN 13157:2004+A1:2009 and AS1418.2, ensuring compliance with stringent international safety standards.

Each unit is fully certified and supplied with a test certificate or EC Declaration of Conformity, confirming compliance with the Machinery Directive 2006/42/EC.

Operating temperature range is –40°C to +80°C, with optional capability down to –60°C, making it suitable for extreme environments.

Ideal for Heavy-Duty and Precision Lifting Applications

The Tiger Geared Trolley is widely used across industries requiring controlled load movement, including:

Heavy engineering and fabrication
Construction and infrastructure projects
Manufacturing and production lines
Oil & gas and offshore environments
Chemical and hazardous area operations (ATEX models)

Its combination of precision control, durability, and safety compliance makes it a critical component in advanced lifting systems.

Safety & User Instructions
Ensure trolley is correctly adjusted and secured to the beam before use.
Operate hand chain smoothly—avoid sudden or shock loading.
Inspect gears, chain, wheels, and safety components regularly.
Do not exceed the stated working load limit.
Ensure beam end stops are installed to prevent over-travel.
Use ATEX-certified models where required in hazardous environments.
Never use for lifting personnel.
Follow all applicable lifting regulations and inspection procedures.

Key Features
Heavy-duty geared beam trolley with hand chain operation
Manufactured by Tiger Lifting
Available in TGS (single bar) and TGT (twin bar) configurations
Capacity range 0.5 tonne to 35 tonnes
Precision load positioning with geared travel
Sealed bearings for smooth, low-maintenance operation
Convex wheel profile reduces wear and point loading
Anti-drop plates for enhanced safety
Optional beam locking device
Available in corrosion resistant and ATEX spark resistant versions
Certified to BS EN 13157 and Machinery Directive 2006/42/EC
Operating temperature –40°C to +80°C (–60°C optional)
5:1 safety factor
