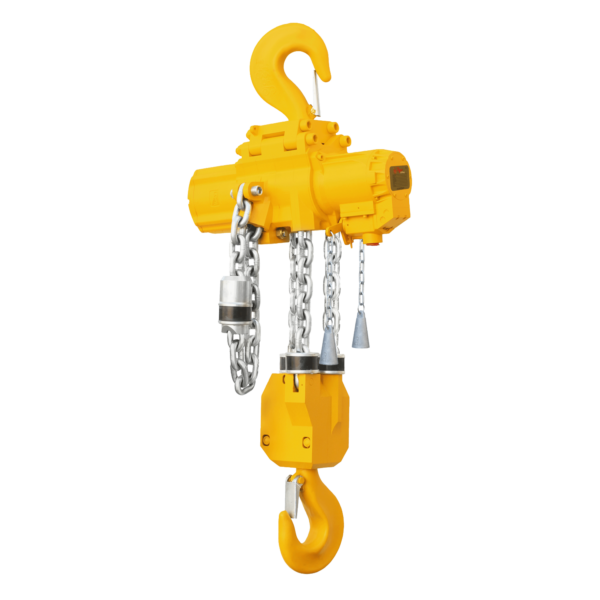

Tiger TAH52 Pneumatic Air Hoist – 5t to 20t
TIG-TAH52
The Tiger TAH52 Pneumatic Air Hoist is engineered for extreme lifting demands up to 20 tonnes. Designed for heavy industrial and offshore environments, it delivers exceptional strength, precision control, and continuous operation with full ATEX safety compliance.
Price on request
Description
The Tiger TAH52 Pneumatic Air Hoist (5t�20t) is a high-performance, heavy-duty lifting solution built for the world�s most demanding industries such as mining, shipyards, offshore platforms, power plants, and manufacturing facilities. Powered entirely by compressed air at 4�6 bar, the TAH52 offers a 100% duty cycle, allowing uninterrupted operation even during continuous use. This makes it a reliable alternative to electric hoists.
Constructed to meet ASME B30.16 and EN14492-2 standards, the TAH52 combines superior strength, precision control, and robust design for maximum performance and safety. It features an integral differential pressure load limiter that prevents overloading beyond 125% of its working limit, alongside a fail-safe automatic disc brake that engages instantly when the air supply is cut.
Operators benefit from precise load positioning, whether using toggle or pendant controls, making the hoist ideal for delicate or complex handling tasks. The vane motor design provides high starting torque under load, while the sealed planetary gearbox ensures long service life under the most intensive duty cycles.
Noise is minimised with a built-in silencer (below 85dB(A)), and the Grade 8 load chain (EN818-7 compliant) guarantees high endurance for lifting cycles. The modular design simplifies servicing and maintenance, while optional stainless-steel chain carriers prevent snagging and protect the chain during transport or operation.
Certified to ATEX Directive 2014/34/EU, the TAH52 is suitable for Zone 2 (gas) and Zone 22 (dust) environments with marking Ex II 3 GD c IIB T4 IIIB T135�C. It�s also available in ATEX Category 2 (high safety) versions on request, making it an excellent choice for hazardous and offshore operations.
Pendant control options include hard-anodised aluminium, nickel-plated SG iron, or twist-grip, with dual-hoist and remote control configurations available for advanced handling.
With its rugged construction, precision controls, and ability to operate continuously under the toughest conditions, the Tiger TAH52 is the ultimate solution for large-scale, heavy-duty pneumatic lifting.
Technical information
| Weight | N/A |
|---|
