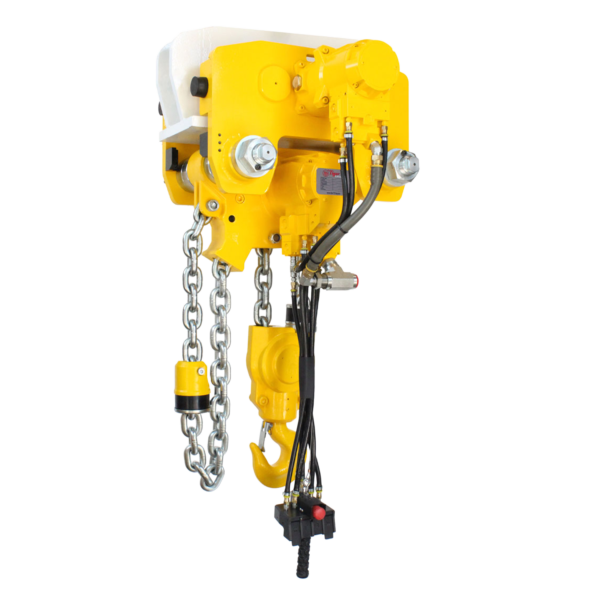

Tiger TAH-M Monorail Pneumatic Air Hoist – 10t to 20t

Description

The Tiger Monorail Trolley Pneumatic Air Hoist � MTH Series is a rugged, high-performance pneumatic lifting system designed for heavy-duty industrial environments. Used globally across mining operations, shipyards, offshore construction, automotive manufacturing, foundries, and power stations, the MTH Series offers reliable lifting and traversing under continuous operation.

Operating at 4�6 bar air pressure, the MTH Series hoists provide a 100% duty cycle, ensuring uninterrupted performance for intensive lifting applications. Manufactured in an ISO 9001-certified facility and compliant with ASME B30.16 and EN 14492-2, these hoists meet the highest safety and performance standards worldwide.

Safety is integral to the MTH design. Each unit includes anti-fall, anti-derailment, and anti-tilt mechanisms, ensuring the trolley and load remain stable even under dynamic conditions. The differential pressure load limiter automatically prevents the operator from lifting more than 125% of the working load limit (WLL), repeatable at all working pressures without generating heat or wear.

All MTH models include a main line emergency stop as standard, instantly shutting off the air supply to both the hoist and traverse motors when activated.

The fail-safe disc brake, made from non-asbestos materials, engages automatically when the air supply is cut, holding loads in excess of 125% WLL. The brake is self-adjusting and maintenance-free throughout its service life.

For operator comfort and environmental control, the integrated silencer keeps noise levels below 83 dB(A), while the sealed planetary gearbox with heat-treated gears and low-friction bearings ensures maximum durability and minimal maintenance.

Precision is at the core of the MTH Series. Its vane motor provides maximum starting torque under load, while the variable-speed control allows for accurate and smooth load positioning.

Constructed with Grade 8 load chain in accordance with EN 818-7 Appendix B, these hoists are built for stringent high-speed duty cycles. Maintenance is simplified thanks to a modular design, giving easy access to the motor, gearbox, brake, and load limiter.

Optional stainless steel chain carriers are available in various capacities to safely store excess chain during lifting or transport, preventing tangles and protecting the chain from contamination or damage.

Certified for ATEX Category 3 (normal safety) and marked Ex II 3 GD c IIB T4 IIIB T135�C, the MTH Series is suitable for Zone 2 (gas) and Zone 22 (dust) hazardous environments � ideal for operations where electrical ignition risks must be eliminated.

With its proven reliability, safety, and performance, the Tiger Air Monorail Trolley Hoist MTH Series is an exceptional choice for industrial lifting, vacuum handling, and hazardous environment operations where durability and precision are paramount.
