Pewag G6+ Stainless Steel Single Leg Pump Lifting Chain

Name: Pewag G6+ Stainless Steel Single Leg Pump Lifting Chain - Lifting Gear Products
SKU: PEW-PS-G6-1L
Availability: InStock

PEW-PS-G6-1L

Pewag G6+ stainless steel single leg pump lifting chain manufactured from AISI 316 marine grade stainless steel. Fully welded construction with 100% weld penetration for hygienic and corrosive environments. Supplied with AWI oval master links and stainless steel ID tag. Load capacities from 200kg to 12 tonnes.

Price on request

WLL

Guage

Request a Product Modification

If you would like to request a change to this product that isn’t available within the current options, please enter your requirements here. Any modifications will need to be processed through our quote system rather than purchased directly online.

Add to Quote

Description

The Pewag G6+ Stainless Steel Single Leg Pump Lifting Chain is a specialist lifting assembly designed specifically for safe vertical lifting of pumps and submersible equipment in corrosive, wet and hygienic environments. Manufactured from AISI 316 marine grade stainless steel, this chain assembly offers excellent resistance to corrosion, chemicals and contamination.

Each pump lifting chain is fully welded using advanced butt resistance or flash butt welding techniques, achieving 100% full penetration welds throughout the assembly. This eliminates hollow spaces or cracks where water, chemicals or residue could accumulate, making the chain ideal for water, wastewater, chemical and oil industry applications.

The welded stainless steel system provides a clean, smooth surface finish, ensuring persistent and profound pollution is minimised and allowing the chain to be easily cleaned and maintained. This makes it particularly suitable for installations where hygiene, reliability and long service life are essential.

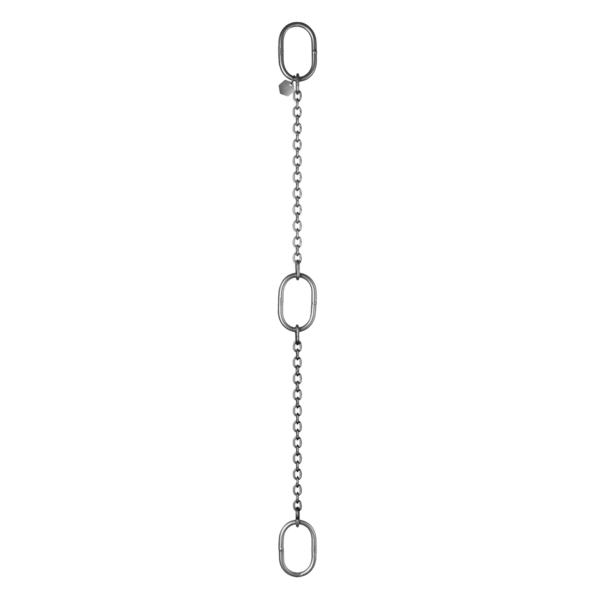

Pewag G6+ pump lifting chains are supplied with an AWI oval stainless steel master link at each end, as well as additional master links every metre along the length of the chain. This design improves handling, positioning and attachment during pump installation and removal.

Each assembly is proof load tested by the manufacturer to 2 × the Working Load Limit (WLL) and is fully traceable. Every chain and component is batch numbered and grade marked, with a stainless steel identification tag displaying the unique serial number, WLL, manufacturers mark and sling grade.

Standard assemblies are supplied as single leg vertical lifting chains, with effective working length manufactured to order. Special configurations can be supplied on request.

Applications
Pewag G6+ stainless steel pump lifting chains are commonly used for:
Water and wastewater pumping stations
Submersible pump installation and removal
Chemical and oil industry pumping systems
Marine and coastal pumping applications
Clean technology and renewable energy facilities
Corrosive or permanently wet environments

Safety & User Instructions
Designed for vertical lifting of pumps and equipment
Do not exceed the stated Working Load Limit (WLL)
Inspect welds, chain and ID tag before each lift
Apply reduction factors in severe conditions if applicable
Not suitable for temperatures above 350°C
Use only with compatible lifting equipment

Key Features

Single leg stainless steel pump lifting chain Manufactured from AISI 316 marine grade stainless steel Fully welded construction with 100% weld penetration Smooth, hygienic surface easy to clean Excellent corrosion and chemical resistance Load capacities from 200 kg to 12,000 kg AWI oval stainless steel master links fitted at each end Additional master link fitted every metre Proof load tested to 2 × WLL Full traceability with stainless steel ID tag Manufactured to order to specified effective working length
