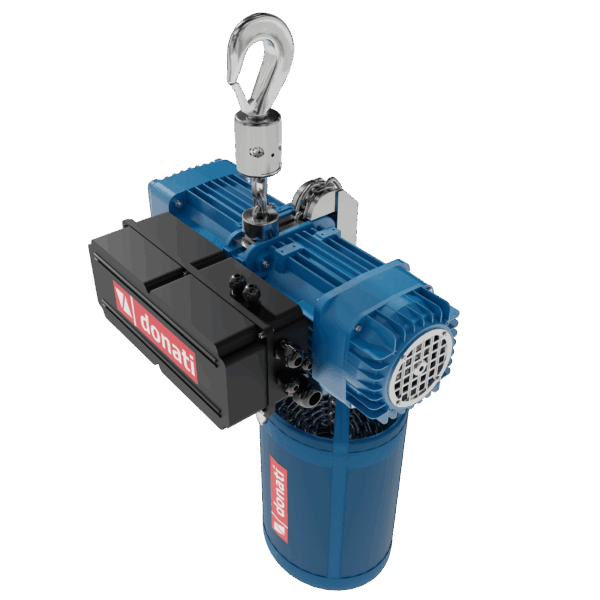

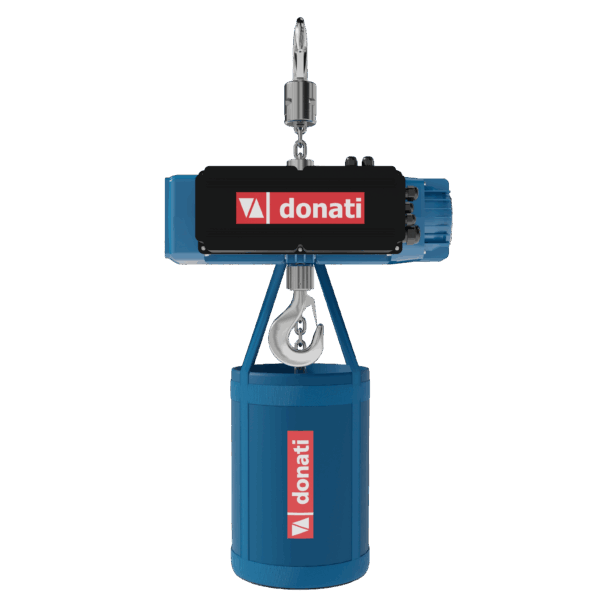

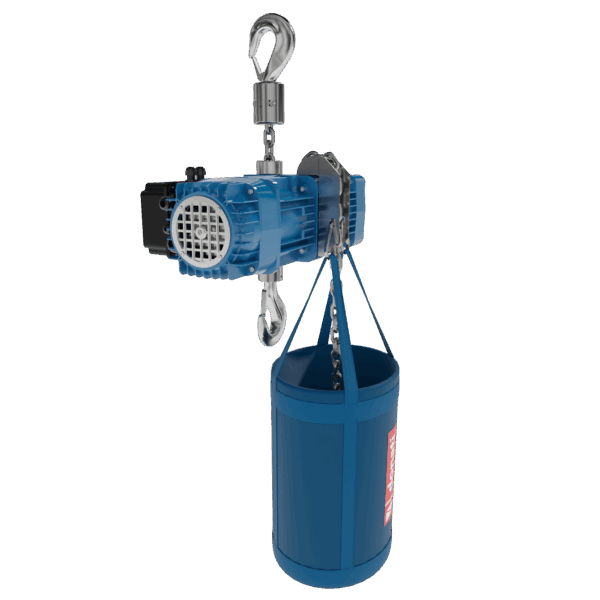

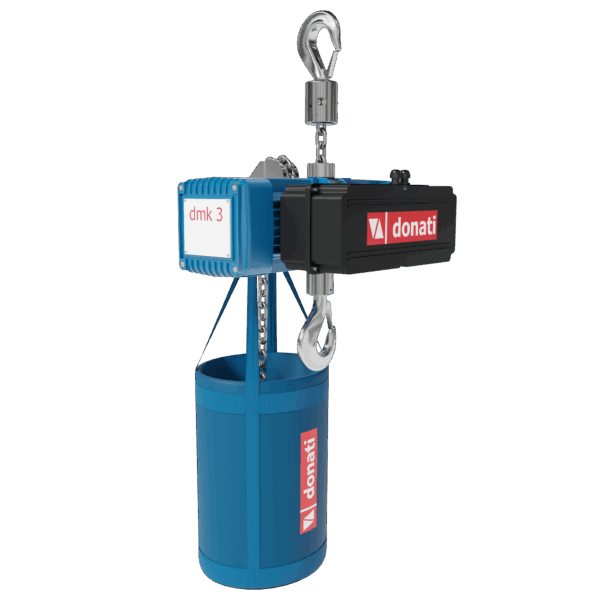

Donati DMK Series Climbing Electric Chain Hoist – Up to 2,000 kg, Self-Climbing Design for Easy Rigging and Installation
DON-ECHDMK-CL
The Donati DMK Climbing Electric Chain Hoist is designed for rigging and entertainment environments, allowing easy access to the installation point without lifting the hoist’s full weight. With capacities up to 2,000 kg, FEM 2M (M5) rating, and lifting speeds of 4 or 8 m/min, it provides reliable and efficient operation for frequent assembly and dismantling at height.
From: £1,101.10£1,321.32 Exc VATInc VAT
Description
The Donati DMK Series Climbing Electric Chain Hoist offers a flexible and efficient solution for lifting applications that demand frequent installation and dismantling at height. Unlike traditional hoists, the climbing version is designed so that the hoist body itself moves up the load chain, allowing the operator to reach the installation point without needing to lift the full hoist weight.
This unique self-climbing design makes it especially suited to the entertainment and events industry, where compactness, ease of handling, and quick rigging setup are essential.
Whether used in theatres, concert venues, or touring production environments, the Donati DMK Climbing Hoist delivers safe, reliable, and efficient lifting every time.
Built on the proven DMK series platform, it features the same high-quality construction and reliability that Donati is renowned for — including self-braking conical motors, precision-machined components, and robust IP-rated protection.
Available Capacities: from 125 kg up to 2,000 kg, with FEM (ISO) classification 2M (M5) for high duty performance.
Lifting Speeds: 4 or 8 m/min (depending on configuration).
Each hoist is supplied with a durable fabric chain bag, ensuring smooth chain management during operation and transport.
The climbing configuration offers significant ergonomic advantages, reducing installation effort and enhancing safety during overhead setup.
Key Technical Features (shared with the fixed DMK execution):
Motors: Self-braking conical lifting motors with IP55 protection, insulation class “F”
Brakes: IP23 rated, automatic load-holding brake
Limit Switches: IP65 protection for safe operation
Power Cables: IEC 20/22 II, 450/750 V insulation
Noise Level: <85 dB(A) under full load
Finish: Water-repellent electrostatic paint for durability and corrosion resistance
Electrical Supply Options:
Standard three-phase 400 V / 50 Hz AC
Optional voltages and frequencies on request
Operating Conditions:
Temperature range: –10°C to +40°C
Maximum relative humidity: 80%
Maximum altitude: 1,000 m above sea level
Indoor installation in dry, ventilated environments
Technical information
| WLL | 1 tonne, 2 tonne, 125kg, 250kg, 500kg |
|---|---|
| Lifting Speed (m/min) | 4, 8 |
Key Features
Load Capacity: 125 – 2,000 kg
Configuration: Self-climbing hoist – motor unit travels along the chain
Motor Type: Self-braking conical motor for precise lifting control
Lifting Speed: 4 or 8 m/min
Duty Rating: FEM/ISO 2M (M5)
Chain Management: Fabric chain bag included
Protection Ratings: IP55 motor, IP23 brake, IP65 limit switches
Power Supply: 400 V three-phase, 50 Hz (others on request)
Temperature Range: –10°C to +40°C
Noise Level: <85 dB(A)
Finish: Water-repellent electrostatic coating for corrosion resistance
Applications: Stage rigging, entertainment, theatres, events, touring productions
