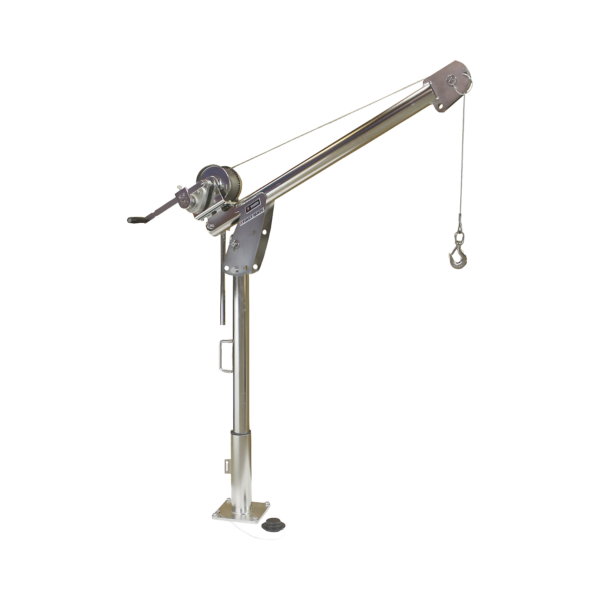

Thern Portable Stainless Steel Lifting Davit Crane First Mate 5PF5S-M3+ with Manual Winch and Base – up to 385kg WLL

Description

The Thern First Mate 5PF5S-M3 Portable Stainless Steel Davit Crane is a compact and corrosion-resistant lifting system designed for industrial maintenance, marine environments, and hygiene-sensitive facilities where durability and portability are essential. With a maximum lifting capacity of 385 kg, this davit crane delivers reliable lifting performance while remaining lightweight and easy to transport between work areas.

This model is supplied as a complete stainless steel lifting solution, including the 5PF5S stainless steel davit crane, M4042PBSS-CE stainless steel spur gear manual winch, stainless steel wire rope with hook, and the 5BP5S stainless steel pedestal base mount. The use of 304 stainless steel throughout the crane and base provides superior corrosion resistance, making it ideal for marine environments, food processing facilities, wastewater plants, and chemical handling areas.

The First Mate davit arm features a fixed boom length with three adjustable operating angles, allowing operators to select the most appropriate lifting configuration based on the load position and required reach. Each boom position supports a different lifting capacity, enabling safe and flexible lifting operations across a range of applications.

Designed with portability in mind, the crane incorporates quick-release hardware and snap fastenings, allowing it to be assembled, removed, or relocated within minutes without the need for tools. The davit arm can also fold for convenient transport and compact storage, making it particularly useful for maintenance teams operating across multiple sites or lifting locations.

The included M4042PBSS-CE stainless steel spur gear hand winch provides smooth and reliable manual lifting. It is fitted with stainless steel wire rope measuring 13.7 metres in length, terminated with a durable load hook for secure lifting operations. The stainless steel rope ensures long service life in wet, corrosive, or hygienic environments.

Once installed, the davit crane provides 360� rotation, enabling operators to easily position loads and improve handling efficiency during lifting tasks. Combined with its lightweight construction and corrosion-resistant materials, the crane is suitable for demanding environments where conventional painted or galvanised equipment may not provide sufficient protection.

Due to its portable design, corrosion resistance, and reliable lifting capability, the First Mate 5PF5S-M3 is widely used in water and wastewater treatment facilities, marine maintenance operations, food production environments, rooftop installations, and industrial plant servicing.

The davit crane is CE marked and supplied with a Declaration of Conformity, confirming compliance with European safety requirements. It is also supported by Thern�s 2-year standard manufacturer warranty, ensuring confidence in long-term performance.

Optional accessories are available to extend system functionality, including additional davit sockets for multiple mounting locations, pedestal extensions to increase hook height, additional quick-disconnect wire ropes, headache balls to maintain rope tension, and rotational locks to secure the davit position during lifting operations.

With its fully stainless steel construction, portable design, and reliable manual lifting system, the Thern First Mate 5PF5S-M3 Portable Stainless Steel Davit Crane provides a dependable lifting solution for corrosive, hygienic, and demanding industrial environments.

Technical Specifications
Specification Details
Maximum Load Capacity 385 kg
Load Capacity @ 609 mm 385 kg
Load Capacity @ 889 mm 272 kg
Load Capacity @ 1066 mm 225 kg
Overall Width 1066 mm
Overall Length 1066 mm
Overall Height 1778 mm
Maximum Hook Height 1778 mm
Minimum Hook Height 1016 mm
Crane Arm Length 609 mm � 1066 mm
Rotation 360�
Wire Rope Diameter 6.3 mm
Wire Rope Length 13.7 m
Winch Type M4042PBSS-CE stainless steel spur gear manual winch
Finish 304 stainless steel davit and pedestal base
Total Weight 44 kg
Assembly Supplied pre-assembled, final assembly by customer

Safety Notice
The installer or operator must ensure the mounting socket is securely anchored and structurally suitable before use.
This equipment is not designed for lifting personnel or loads above people.
Always operate within the rated load capacities for each boom position.
Follow relevant lifting safety procedures and site operating standards.

Typical Applications
Water and wastewater pump lifting and maintenance
Marine and offshore environments
Food processing and hygienic facilities
Industrial plant maintenance
Construction and rooftop equipment servicing
