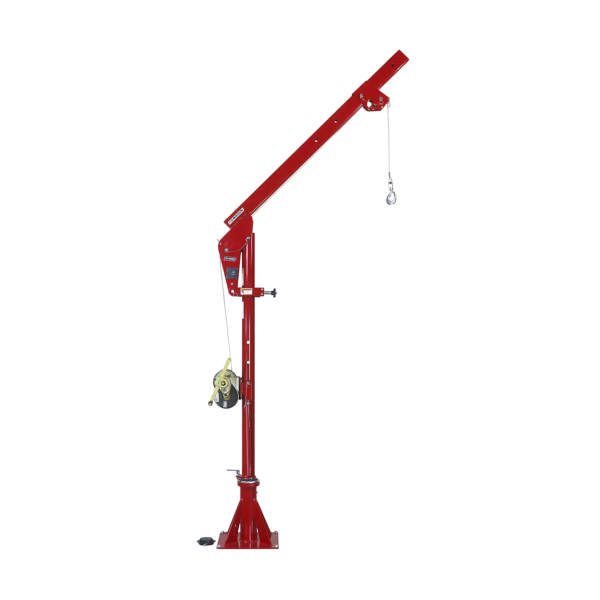

Thern Portable Lifting Davit Crane Ensign 5PA10-M1+ with Spur Gear Manual Winch and Base – up to 544kg WLL
THR-LD-CONFIG-5PA10-M1+
The Thern Ensign 5PA10-M1 is a heavy-duty portable lifting davit crane with 544 kg capacity, a manual spur gear winch, 6.4 mm galvanised wire rope, and pedestal base. Designed for tall and heavy loads, it features 360� rotation, extended hook height up to 3048 mm, roller-ball bearings, and quick-release portability. Ideal for water/wastewater, industrial, and marine lifting tasks.
Price on request
Description
The Thern Ensign 5PA10-M1 Lifting Davit Crane offers robust portable lifting for loads up to 544 kg, making it ideal for demanding industrial, marine, and wastewater applications. Its powder-coated steel construction ensures durability, while the extended mast and boom provide a maximum hook height of 3048 mm when mounted on the 5BP10 pedestal base, easily clearing safety gates, rails, and other obstacles.
Equipped with a M4312PB-CE spur gear manual winch and a 6.4 mm x 13.7 m galvanised wire rope with painted hook, this crane ensures smooth, controlled lifting of heavy loads. The roller-ball bearing system and rotation locks allow effortless rotation and precise load positioning.
The 5PA10-M1 disassembles quickly using quick-release hardware and pins, enhancing portability for storage or use with alternate bases. Its ergonomic design and boom adjustment knob make operation simple and user-friendly.
Optional accessories include additional davit sockets for multi-location mounting, extra wire ropes for faster retrieval, and headache balls to maintain rope tension.
With CE marking, Declaration of Conformity (DOC), and a 2-year standard warranty, the 5PA10-M1 delivers safe, reliable, and portable lifting for heavy-duty operations.
Technical Specifications
Specification Details
Maximum Load Capacity 544 kg
Load Capacity @ 558 mm 544 kg
Load Capacity @ 660 mm 453 kg
Load Capacity @ 812 mm 362 kg
Load Capacity @ 990 mm 294 kg
Overall Width 1219 mm
Overall Length 1219 mm
Overall Height 3048 mm
Maximum Hook Height 3048 mm
Minimum Hook Height 2362 mm
Crane Arm Length 558 mm � 1219 mm
Rotation 360�
Wire Rope Diameter 6.4 mm
Wire Rope Length 13.7 m
Winch Type M4312PB-CE spur gear manual winch
Finish Powder-coated davit and base
Weight 105 kg
Product Type Lifting Davit
Assembly Supplied pre-assembled, final assembly by customer
Safety Notice
Ensure the pedestal base is securely anchored and structurally sound before use.
Not for lifting personnel or loads over people.
Operate within rated load capacities for each boom position.
Follow standard lifting safety procedures and workplace regulations.
Typical Applications
Water/wastewater pump lifting
Industrial maintenance and servicing
Marine equipment handling
Operations requiring elevated hook heights and heavy loads
Optional Accessories
Additional davit sockets � pedestal, flush, or wall mounts for multi-location installation
Extra galvanised wire ropes � quick disconnect for faster pump retrieval
Headache ball � keeps rope taut with no load
