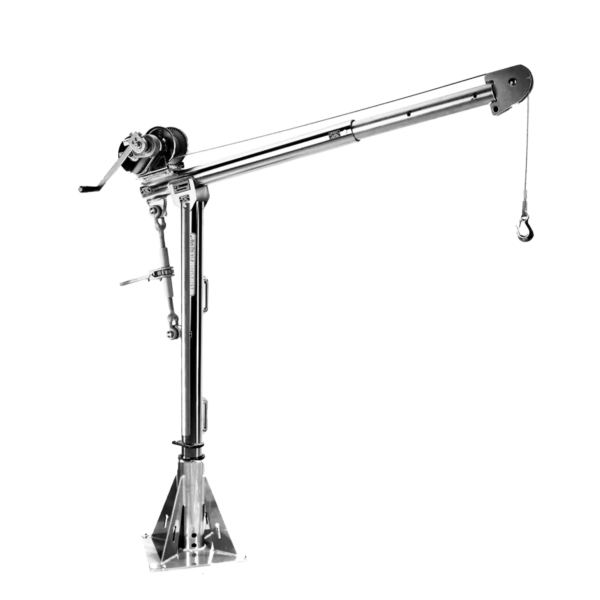

Thern Portable Stainless Steel Lifting Davit Crane Commander 5PT20S-M3+ with Spur Gear Manual Winch and Base – up to 905kg WLL
THR-LD-CONFIG-5PT20S-M3+
The Thern Commander 5PT20S-M3+ is a 905 kg portable stainless steel lifting davit crane featuring a 304 stainless steel frame, M4312PBSS-CE spur gear hand winch, stainless steel rope with hook, and a durable 5BP20S stainless steel pedestal base. Ideal for marine, water/wastewater, industrial, and construction applications, this crane provides 360� rotation, adjustable telescoping boom, and tool-free assembly, combining heavy lifting capability with portability and corrosion resistance.
Price on request
Description
The Thern Commander 5PT20S-M3+ is a premium 304 stainless steel portable lifting davit crane engineered for professional industrial, marine, and wastewater applications. Its robust stainless steel construction ensures superior corrosion resistance, making it perfect for harsh environments including saltwater exposure and chemical processing plants.
Capable of lifting up to 905 kg, this portable crane allows operators to handle heavy equipment, pumps, and other industrial loads safely and efficiently. The crane�s maximum hook height of 2463 mm (97 inches) provides ample clearance to lift over walls, railings, or obstacles, offering maximum flexibility on site.
Equipped with a M4312PBSS-CE stainless steel spur gear hand winch and stainless steel lifting rope with hook, the 5PT20S-M3+ ensures smooth, controlled, and precise lifting. The winch is manual, yet durable, providing reliable performance in demanding environments. The telescoping boom with adjustable angles allows operators to position loads accurately in a variety of applications.
This davit crane features 360� rotation, enabling precise load placement in confined or multi-directional workspaces. Quick-release pins and hardware allow for fast assembly and disassembly without tools, enhancing portability for multi-site operations. The stainless steel 5BP20S pedestal base provides a solid, corrosion-resistant foundation, ensuring stability and safety during lifts.
The Thern Commander 5PT20S-M3+ is ideal for marine maintenance, pump retrieval, industrial equipment handling, construction, and water/wastewater operations. Its combination of stainless steel durability, heavy lifting power, and portability makes it an indispensable tool for professional lifting applications.
Technical Specifications
Specification Details
Maximum Load 905 kg
Load @ 711 mm 905 kg
Load @ 914 mm 860 kg
Load @ 1143 mm 680 kg
Load @ 1346 mm 590 kg
Overall Width 2082 mm
Overall Height 2463 mm
Overall Length 2082 mm
Max Hook Height 2463 mm
Min Hook Height 1092 mm
Crane Arm Length 711 mm � 2082 mm
Rotation 360�
Finish 304 Stainless Steel davit and pedestal base
Winch M4312PBSS-CE stainless steel spur gear hand winch
Weight 143 kg
Product Type Lifting Davit
Supplied Pre-assembled, final assembly by customer
Safety & User Instructions
Ensure the pedestal base is securely anchored before operation.
Do not exceed the maximum rated load of 905 kg.
Never lift personnel or suspend loads over people.
Inspect all components including the winch, rope, and davit prior to use.
Maintain a clear operational area and follow safe lifting practices.
Confirm that quick-release pins and bolts are fully engaged before each lift.
Optional Accessories
Additional davit sockets � pedestal, flush, or wall mounts for multi-location use
Base extension � increases pedestal height by 381 mm
Extra stainless steel wire ropes � quick disconnect from winch for faster pump retrieval
Headache ball � maintains rope tension with no load
Roller bearing with lock � smooth 360� rotation with secure positioning
Applications
The Thern Commander 5PT20S-M3+ is suitable for:
Marine and offshore pump lifting
Industrial equipment handling and maintenance
Water and wastewater management
Construction and civil engineering tasks
Portable heavy lifting in multi-site operations
