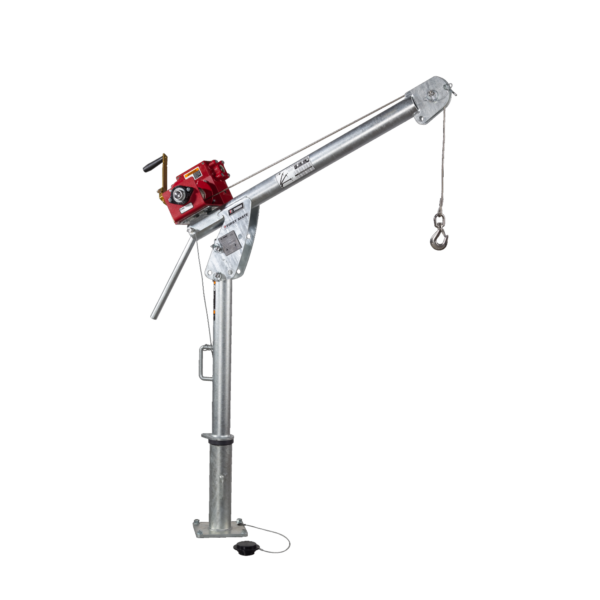

Thern Portable Lifting Davit Crane First Mate 5PF5G-M2+ with Manual Winch and Base – up to 385kg WLL

Description

The Thern First Mate 5PF5G-M2 Portable Davit Crane is a compact and corrosion-resistant lifting system designed for industrial maintenance, water treatment facilities, marine environments, and construction sites where portable lifting capability is required. With a maximum lifting capacity of 385 kg, this lightweight davit crane provides dependable performance while remaining easy to transport and relocate between job locations.

This model is supplied as a complete lifting system, including the 5PF5G galvanised davit crane, 4WM2-CE worm gear manual hand winch, galvanised wire rope with hook, and the 5BP5G galvanised pedestal base mount. The galvanised finish across the davit and base provides excellent corrosion resistance, making the system particularly suitable for outdoor installations and harsh environments such as marine or wastewater facilities.

The davit arm is designed with a fixed boom length and three adjustable operating angles, allowing operators to select the most suitable configuration depending on load reach and lifting requirements. Each boom position provides a different rated lifting capacity, ensuring safe operation while maintaining flexibility for a range of lifting tasks.

A key advantage of the 5PF5G-M2 system is the inclusion of the 4WM2-CE worm gear hand winch, which features a drill-drive capability. This allows the winch to be operated using a compatible power drill (maximum 400 RPM drive speed) for faster lifting and lowering, reducing manual effort during longer lifting operations or repetitive maintenance tasks.

The crane is supplied with 6.4 mm diameter galvanised steel wire rope measuring 13.7 metres, terminated with a durable load hook for secure lifting. The galvanised rope provides excellent corrosion resistance and durability in demanding working conditions.

Designed for maximum portability, the davit incorporates quick-release hardware and snap fastenings, allowing the crane to be assembled, disassembled, or relocated quickly without the need for tools. The davit arm can also fold for compact transport and storage, making it ideal for maintenance teams working across multiple locations.

Once mounted, the crane provides 360� rotation, enabling easy positioning of loads and improving operational flexibility in restricted or confined workspaces. The fully galvanised structure ensures long-term durability and reliable performance in challenging industrial environments.

Due to its lightweight construction, corrosion-resistant finish, and flexible lifting capability, the First Mate 5PF5G-M2 is widely used in water and wastewater facilities for pump lifting and removal, as well as maintenance operations on rooftops, ships, silos, and industrial structures.

The system is CE marked and supplied with a Declaration of Conformity, confirming compliance with European safety standards. Thern also provides a 2-year standard manufacturer warranty, reflecting the product�s reliability and build quality.

Additional accessories are available to enhance functionality, including extra davit sockets for multiple mounting locations, base extensions to increase hook height, additional wire ropes with quick-disconnect fittings, headache balls to maintain rope tension when unloaded, and rotational locks to secure the crane during lifting operations.

Combining corrosion-resistant galvanised construction, portable design, and drill-assisted lifting capability, the Thern First Mate 5PF5G-M2 Portable Davit Crane provides a reliable lifting solution for professional maintenance and industrial environments.

Technical Specifications
Specification Details
Maximum Load Capacity 385 kg
Load Capacity @ 609 mm 385 kg
Load Capacity @ 889 mm 272 kg
Load Capacity @ 1066 mm 225 kg
Overall Width 1066 mm
Overall Length 1066 mm
Overall Height 1778 mm
Maximum Hook Height 1778 mm
Minimum Hook Height 1016 mm
Crane Arm Length 609 mm � 1066 mm
Rotation 360�
Wire Rope Diameter 6.4 mm
Wire Rope Length 13.7 m
Winch Type Worm gear manual winch (drill driveable)
Finish Fully galvanised davit and pedestal base
Total Weight 44 kg
Assembly Supplied pre-assembled, final assembly by customer

Safety Notice
The installer or user must ensure the mounting socket is securely anchored and structurally suitable before operation.
This equipment is not designed for lifting personnel or loads above people.
Always operate within the rated load capacities for each boom position.
Follow appropriate lifting safety procedures and site regulations when operating the equipment.

Typical Applications
Water and wastewater pump lifting
Marine and dockside maintenance operations
Industrial plant maintenance
Construction site lifting tasks
Silo and rooftop equipment servicing
