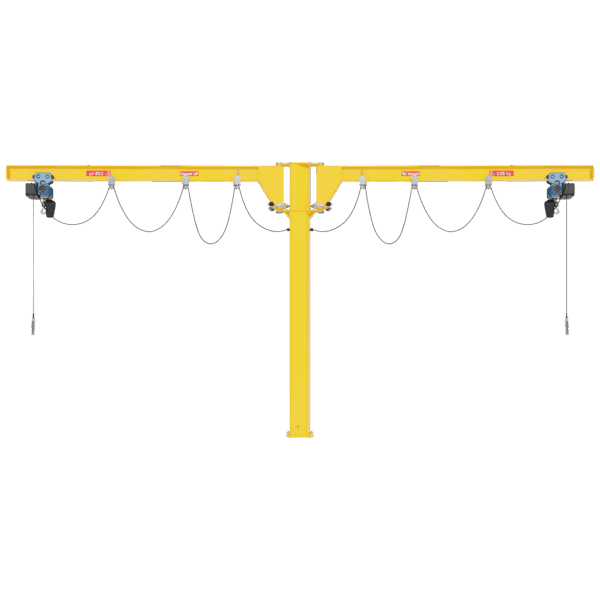

Donati Twin Arm Cantilever Column Jib Crane – Series GBA T-Version Underbraced, 260° + 260° Rotation

Description

The Donati GBA T-Version Twin Arm Cantilever Column Jib Crane is designed for pillar-mounted installations where maximum hook height and wide working area coverage are required. Engineered for reliability and versatility, it offers smooth, stable load handling in demanding industrial environments.

With lifting capacities from 63kg to 1000kg and jib lengths between 2m and 7m, the GBA T-Version provides an efficient and flexible lifting solution for workshops, factories, and production facilities.

The laminated double T-beam (I-beam) arm allows the hoist trolley to run along the lower flange, ensuring precise, controlled movement. The underbraced cantilever design is completely self-supporting—constructed without staybolts and reinforced directly into the rotation tube. This configuration maximises hook height and working clearance, making it ideal for areas where overhead space or layout constraints are a concern.

With a wide dual 260° + 260° manual rotation, operators can easily cover large working areas with minimal effort. The GBA T-Version supports both mechanical and electrical push-trolleys, providing flexibility for different material handling tasks.

Built to Donati’s renowned quality standards, the GBA T-Series combines compact efficiency with durable, long-lasting performance.
