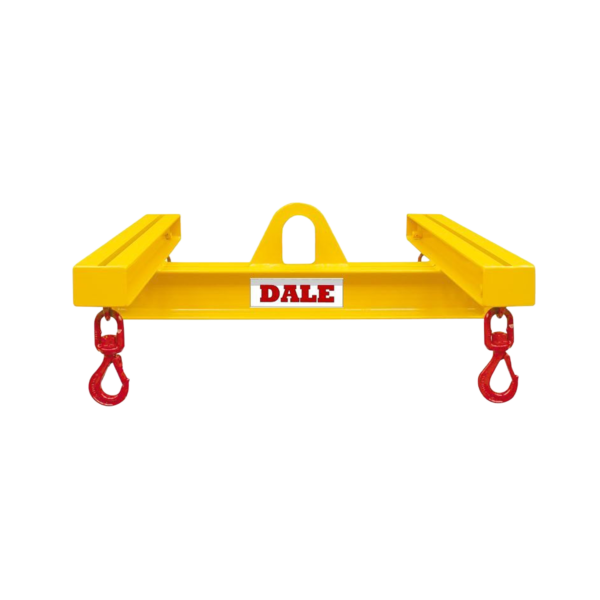

DALE H-Bar Fixed Lifting Beam Type PALHF – 1t to 10t Low Headroom Lifting Beam
DAL-PALHF
The DALE PALHF H-Bar Fixed Lifting Beam is a durable, low-headroom lifting solution designed for handling loads up to 10 tonnes with spans from 1 to 4 metres.
Equipped with four articulated swivel hooks with forged safety latches, this H-bar beam ensures safe, balanced lifting for a variety of industrial applications. Finished in corrosion-resistant RAL 1028 yellow polyurethane and supplied with EC Certificate of Compliance and user manual, the PALHF delivers DALE’s signature reliability and quality engineering.
Description
The DALE PALHF H-Bar Fixed Lifting Beam provides a robust and versatile solution for lifting a wide range of loads where low headroom operation is required. Available in capacities from 1,000 kg to 10,000 kg and spans up to 4 metres, the PALHF is precision-engineered to meet demanding industrial lifting requirements.
Each beam is fitted with four articulated, plain bearing swivel hooks complete with forged safety latches for secure load attachment. The tear-resistant eyelets allow safe use with synthetic slings, wire ropes, or chains, providing flexibility across various lifting setups.
Manufactured in accordance with NFE 52210 and FEM Group 5 standards, the DALE PALHF features a 4:1 safety factor, rust-proof coating, and no structural weld design for maximum strength and durability.
Every unit is supplied fully tested and certified, complete with a user and maintenance manual and EC Certificate of Compliance.
For higher capacities or bespoke configurations, DALE Lifting & Handling Specialists can design and manufacture custom H-bar beams to your specifications.
Technical information
| WLL | 10t, 1t, 2t, 3t, 4t, 5t, 6t, 8t |
|---|---|
| Beam Length | 1000mm, 2000mm, 3000mm, 4000mm |
| Beam Width | 1000mm, 2000mm |
