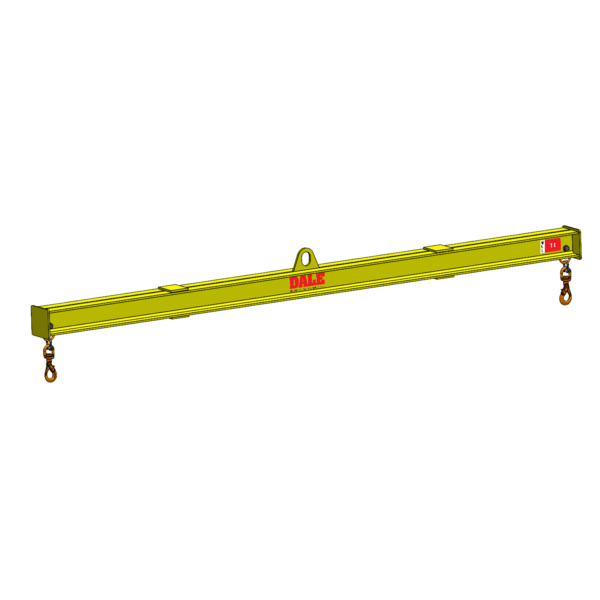

DALE Fixed Lifting Beam Type PALF – 1t to 10t up to 6 Metres Span
DAL-PALF
The DALE Fixed Lifting Beam Type PALF is a high-quality, heavy-duty spreader beam designed for lifting a variety of loads up to 10 tonnes, with spans from 1 to 6 metres. Supplied with articulated swivel hooks, forged safety latches, and CE certification, this lifting beam is ideal for industrial, construction, and marine lifting operations requiring strength, reliability, and compliance.
Price on request
Description
The DALE Fixed Lifting Beam Type PALF provides a safe and efficient solution for lifting heavy or wide loads where stability and even weight distribution are critical.
Manufactured in accordance with Standard NFE 52210 and rated to FEM Group 5, the PALF beam combines exceptional engineering quality with operational safety. The beam is fitted with two articulated, plain bearing swivel hooks equipped with forged safety latches, ensuring a secure connection to the load at all times.
Each unit is supplied with a user and maintenance manual and an EC Certificate of Compliance, guaranteeing conformity to UK and EU lifting standards. The beam is finished with a durable, rust-resistant RAL 1028 yellow polyurethane coating, enhancing both visibility and long-term protection.
With a safety factor of 4, and no structural welds, the PALF is built for dependable service life under demanding lifting conditions. Custom spans and load capacities can be manufactured upon request.
Technical information
| Weight | N/A |
|---|
