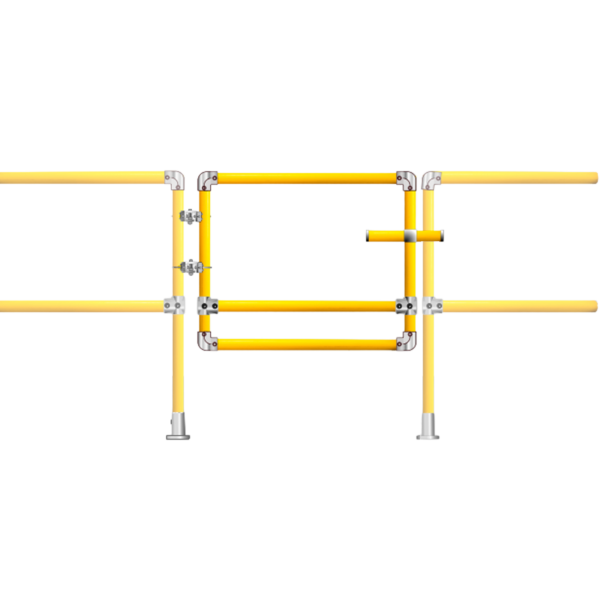

MezzBarriers Self-Closing Retro-Fit Safety Gate – Safety Yellow Tube
MEZ-SG-YELL
The Mezzbarriers Self-Closing Retro-Fit Safety Gate in high-visibility Safety Yellow thermoplastic-coated tube provides robust, EN 14122-compliant protection for elevated work areas, walkways, rooftops, hatches and access points. Designed to automatically close behind the user and supplied with heavy-duty galvanised clamps, this bright, weatherproof safety gate delivers long-lasting visibility and fail-safe performance in demanding industrial environments.
Price on request
Description
The Safety Yellow Self-Closing Retro-Fit Safety Gate provides a bright, clearly visible access protection system for workplaces where safety awareness and visibility are critical. Its high-visibility thermoplastic coating delivers an additional layer of weather resistance while ensuring the gate stands out in busy industrial settings.
Featuring a reliable self-closing mechanism with stainless-steel springs, the gate automatically returns to the closed position once released, removing the risks associated with gates being left open. Whether used on rooftops, mezzanine floors, loading platforms or plant walkways, this gate ensures dependable, permanent fall protection.
The modular tube-clamp system allows for simple adjustment and precise fitting to gaps up to 1 metre. Installation requires minimal tools, making it an ideal retrofit upgrade for existing barriers or older, non-compliant safety systems.
Installation
– Supplied with U-bolt tube clamps for fitting to 33.7mm, 42.4mm, or 48.3mm posts
– Drill-and-bolt hinge version available
– Can be installed left-hand or right-hand
– Width adjustment performed easily with a hex key and steel cutting saw
Component Specification
– Malleable cast iron tube clamps manufactured to BS EN 1562:1997
– Hot-dip galvanised finish to BS EN ISO 1461:1999
– Stainless steel grub screws and springs
– Durable, self-lubricating hinge mechanism
Materials & Finish
– Safety Yellow tube: Thermoplastic warm-touch coating (weatherproof, UV-stable, durable)
– Clamps: Hot-dip galvanised to BS EN ISO 1461:1999
– Tube clamp castings: BS EN 1562:1997 malleable cast iron
– Grub screws and springs: Stainless Steel
Product Options
Available as four standard mounting options:
– Drill-and-Bolt Fixing – All Galvanised
– B34 Tube Clamp Version (33.7mm Ø tube compatibility)
– C42 Tube Clamp Version (42.4mm Ø tube compatibility)
– D48 Tube Clamp Version (48.3mm Ø tube compatibility)
All options feature identical high-performance self-closing functionality.
Optional Accessories (Sold Separately)
– Hi-Vis Hazard Warning Sleeves (1m lengths)
– Push-fit PVC sleeves
– Improves visual safety
– Fits B34, C42, and D48 gates
Reusable and easy to cut
