MezzBarriers Omega Space Saving Pallet Gate – Custom Built – BS EN ISO 14122-3:2016 Compliant
MEZ-OMEGA-PG
The Mezz Barrier Omega Space Saving Pallet Gate is a custom-built mezzanine safety solution designed specifically for tight spaces, narrow walkways, and areas where full pallet access is required. With options up to 3000 mm inside width, 2000 mm inside depth, and 2500 mm load height, this gate is ideal for compact platforms and busy working environments. Built using a fully mechanical, no-weld construction with free-rolling nylon rollers, it provides smooth, reliable operation while maintaining full compliance with BS EN ISO 14122-3:2016. Available in galvanised or Safety Yellow thermoplastic-coated finishes.
Price on request
Description
The Omega Space Saving Pallet Gate is engineered to solve one of the most common issues on mezzanine floors, how to provide safe pallet loading when space is extremely limited. Its compact side frames and unique roller-assisted lifting mechanism make it ideal for narrow walkways, tight loading bays, and small mezzanine platforms where a traditional up-and-over gate would not fit.
This updated Omega model is built entirely using the Mezz Barrier tube clamp system, ensuring a strong, durable structure with all replaceable parts and no welded components. Free-rolling nylon rollers and pulley-assisted movement make raising and lowering effortless. Operators benefit from access to three sides of the pallet, significantly improving loading efficiency and manoeuvrability.
Every Omega gate is made to measure, allowing you to specify the exact inside width, inside depth, and load height required for your application. Fully compliant with BS EN ISO 14122-3:2016, the Omega provides continuous protection during forklift loading and unloading, preventing falls from height and ensuring safe working conditions at all times.
Custom Size Options
You can specify any of the following ranges:
Inside Width (A)
– Up to 3000 mm
(Overall width = inside width + 280 mm)
Inside Depth (B)
– Up to 2000 mm
(Overall depth = inside depth + 100 mm)
Load Height (C)
– Up to 2500 mm
(Overall height = load height + approx. 1400 mm)
Finish Options

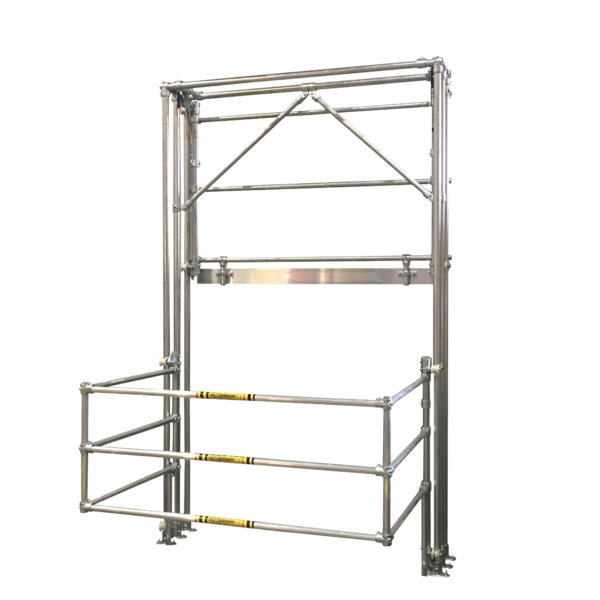

– Fully galvanised

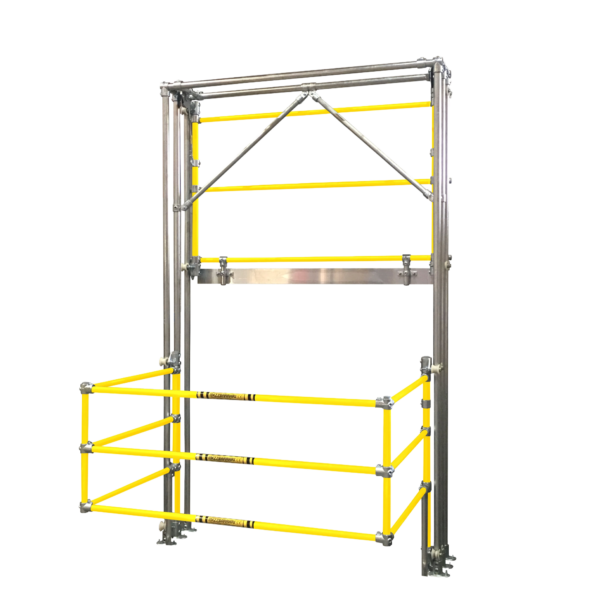

– Galvanised frame with Safety Yellow thermoplastic-coated gate tubes
Why Choose the Omega System?
– Designed specifically for space-restricted locations
– Replaces unsafe chains, bars, or swing gates that can be left open
– Roller-assisted balanced-action makes operation effortless
– Manufactured using long-lasting galvanised steel and corrosion-resistant tube clamps
– Suitable for standard pallets as well as oversized loads
– Provides safe, controlled pallet handling on mezzanines, docks, and high-level platforms
How the Omega Gate Works

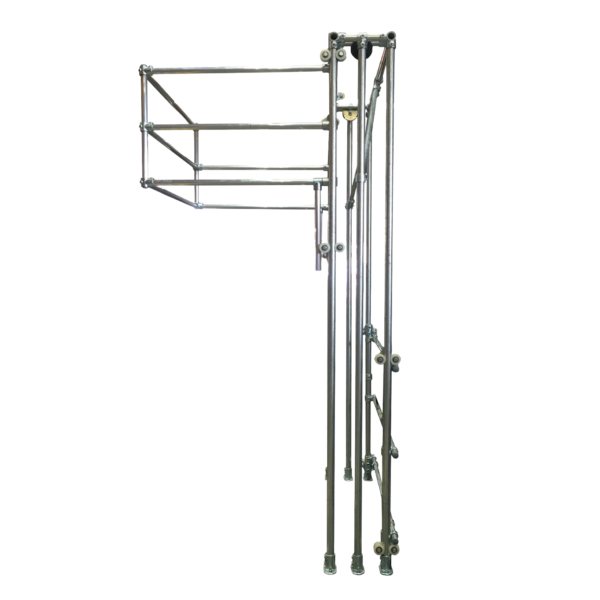

The gate uses a pull-down / push-up balanced-action movement, operating via nylon rollers running inside the compact side frames. Wire-rope pulleys guide the motion, ensuring smooth, low-effort transition between open and closed positions while maintaining full edge protection at all times.
Features & Benefits
– All-galvanised steel construction or warm-touch thermoplastic-coated cross tubes
– 100 mm aluminium kick plate on the edge gate
– High load clearance for tall or stacked pallets
– Supplied partially assembled for simple installation
– Excellent longevity thanks to self-lubricating nylon rollers
– Clear visibility into loading area
– Reinforces safe working behaviour
– Fail-safe mechanical design
Optional Extras
– Available upon request using the quotation form:
– Additional handrailing to complete platform edge protection
– Aluminium floor/edge protection plates (1250 mm × 1150 mm, 100 mm folded edge)
– Safety netting for edge gate
– Hi-Vis yellow/black hazard sleeves (1000 mm lengths)
Component Specification
– Tube clamps: malleable cast iron to BS EN 1562:1997
– Hot-dip galvanised finish to BS EN ISO 1461:1999
– Stainless steel grub screws
– Self-lubricating nylon rollers: low friction, high wear resistance, impact resistant
