MezzBarriers D48 – 48.3 mm Mezzanine Deck Mounted Handrail Kits to BS EN ISO 14122-3:2016 – Galvanised
MEZ-DMHRK48-GALV

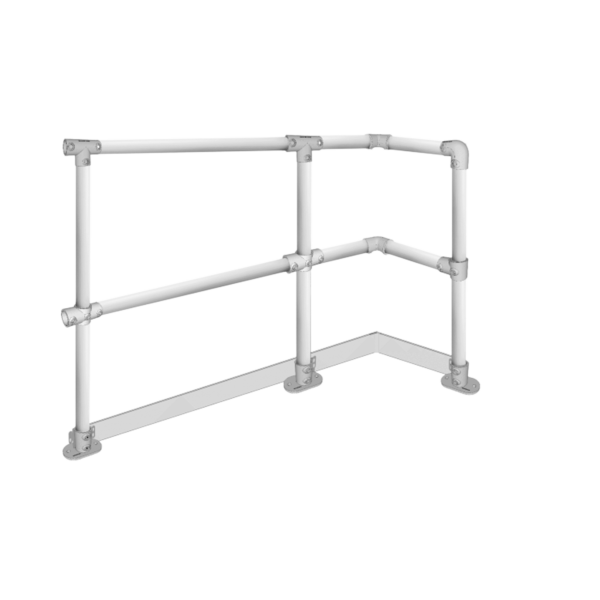

The MezzBarriers D48 48.3 mm Deck Mounted Handrail Kits offer a robust, galvanised edge-protection system for mezzanine floors, platforms, and loading docks, fully compliant with BS EN ISO 14122-3:2016. Featuring pre-assembled posts, ready-cut handrails, and aluminium kick plates, these heavy-duty kits install quickly without welding, making them ideal for high-traffic industrial environments.
Description
The MezzBarriers D48 48.3 mm Deck Mounted Handrail Kits are engineered for level mezzanine decks, platforms, and loading docks where increased strength and durability are required. Fully compliant with BS EN ISO 14122-3:2016, these kits provide reliable edge protection in demanding industrial environments.
Each system is made up of ready-made modular components, sold separately, allowing handrails to be configured precisely to suit site layouts. The use of pre-assembled uprights, pre-cut rails, and integrated kick plates enables rapid installation using semi-skilled labour and basic hand tools.
There is no need to weld, bend, or fabricate tubing on site, significantly reducing installation time and disruption to operations. Most standard guardrail layouts can be achieved using off-the-shelf components, while bespoke configurations are available for machine guarding, staircases, ramps, or complex platform layouts.
Applications
Mezzanine deck edge protection
Industrial platforms and loading docks
Warehouse and logistics facilities
Manufacturing and production areas
Machine guarding interfaces
Elevated walkways and work areas
Features of MezzBarriers Pre-Assembled Railing Kits
Pre-assembled uprights for rapid installation
Uses market-leading Interclamp fittings
Stainless steel grub screws for long-term performance
Compatible with 42.4 mm and 48.3 mm OD systems
Custom kits available on request
Variable angle adjustment for staircases, steps, and ramps
Alternative baseplates available
Integrates with pedestrian safety gates, pallet gates, and high-level loading gates
Benefits
Creates a safe, compliant working environment
No welding, bending, or threading required
Heavy-duty modular construction
Easy to modify or extend as layouts change
Simple installation using a hexagon key
Minimises production downtime
Installation Notes
All kits must be secured using proprietary fixing bolts or anchors (not included), suitable for the specific floor or deck construction.
If tubes are cut on site, kick plates will require re-drilling, or contact us for bespoke cut-down lengths.
