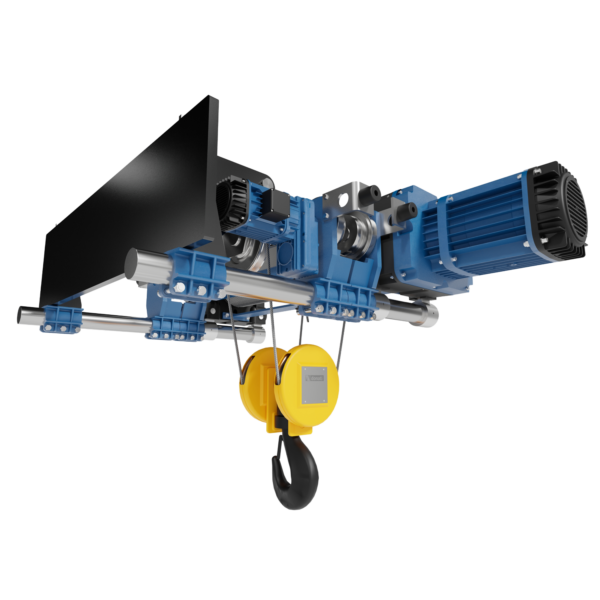

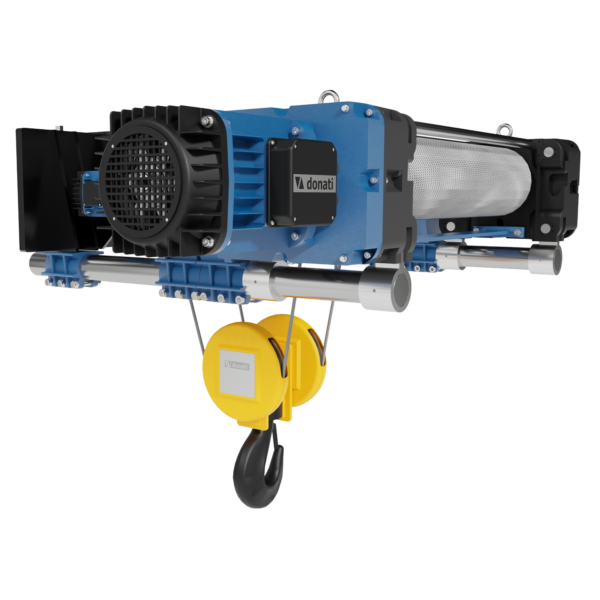

Donati DRH Low Headroom Electric Wire Rope Hoist with Powered Trolley – Up to 20,000 kg Capacity

Description

The Donati DRH Low Headroom Electric Wire Rope Hoist with Powered Trolley is designed for industrial applications where maximum hook height and compact design are essential. This configuration combines the strength and reliability of the renowned DRH hoist unit with a motorised trolley mounted on the lower flange of a single beam, ensuring smooth, precise travel and efficient use of headroom.

Ideal for factories, workshops, and assembly areas with restricted overhead space, this low headroom execution allows operators to maximise lifting height without compromising on performance, safety, or durability.

As with all Donati DRH hoists, this model incorporates high-quality mechanical components, self-braking conical motors, and advanced protective finishes, guaranteeing reliable operation, long service life, and reduced maintenance.

Compact Engineering for Maximum Hook Height

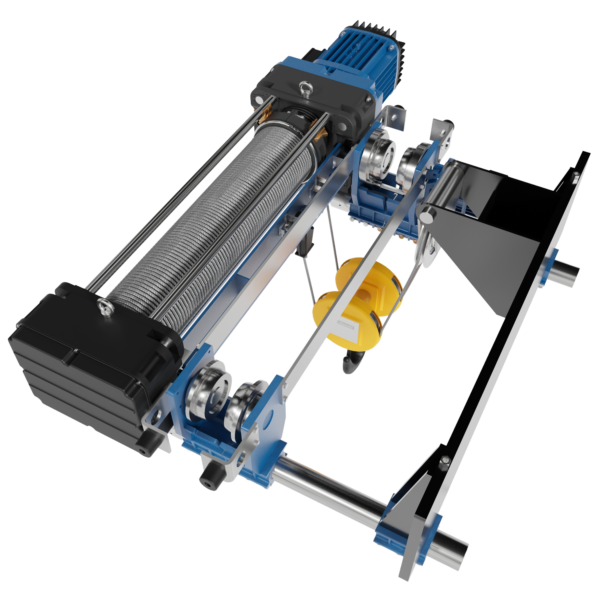

The low headroom configuration positions the hoist body set down on the powered trolley, supported by circular-section bars that provide a balanced, space-efficient structure.
A counterbalance system on the supporting bar offsets the eccentric weight of the hoist, ensuring perfect stability during lifting and travel.

The trolley system is built for precision and reliability, composed of idler and drive wheel assemblies, each equipped with two machined pressed-steel wheels mounted on spherical, permanently lubricated bearings.
The drive wheel assembly uses opposing wheels linked by a crown gear transmission bar, delivering smooth, stable movement under load.

The steel supporting plates are adjustable along the supporting bar and include an anti-derailment device for enhanced safety during travel.

Powered Trolley Drive System

The trolley motor is a conical, self-braking type featuring progressive start-up for controlled acceleration and deceleration.
This ensures gentle movement and precise load positioning, even when handling heavy or delicate items.

Trolley Travel Speeds

Available in single-speed or dual-speed configurations:

Single Speed: 8 m/min, 10 m/min, 16 m/min, or 20 m/min

Dual Speed: 16/4 m/min or 20/5 m/min

The gear reducer features helically cut gears running in a permanently lubricated oil bath, ensuring quiet, low-wear operation and exceptional durability.

Hoisting Capabilities

The DRH Low Headroom Powered Trolley Hoist maintains the same performance specifications as the fixed execution, offering:

Maximum Capacity: up to 20,000 kg

Rope Falls: 2 or 4

Duty Class: FEM/ISO 1Bm (M3) – 3m (M6)

Lifting Speeds: single or dual, from 2 m/min to 12 m/min (depending on drum size)

Hook Run: up to 58 metres, available in drum versions C, N, L, X1, and X2

Electrical and Safety Features

Motor Protection: IP55, Class F insulation

Brake Protection: IP23

Limit Switch Protection: IP65 minimum

Thermal Protection: Integrated sensors on hoist motor

Overload Protection: Standard

Power Supply: 400 V / 50 Hz three-phase (other voltages available on request)

Noise Level: <80 dB(A) Operating Conditions Temperature Range: –10°C to +40°C Maximum Humidity: 80% Maximum Altitude: 1,000 m above sea level Installation: Indoors, in a clean, well-ventilated environment free from corrosive fumes or saline mist Durability and Finish All mechanical components are precision-machined and surface-treated for enhanced wear resistance. The entire assembly is protected with water-repellent electrostatic paint, applied in a fully enclosed process, providing long-term corrosion protection and consistent high performance, even in demanding environments.
