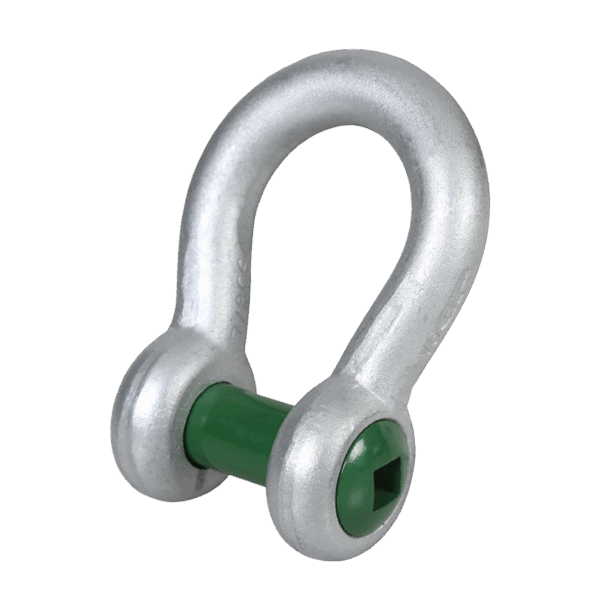

Green Pin® Square Sunken Hole Bow Shackle – GPSQSUB, Grade 6 High Tensile Steel Hot-Dip Galvanised Lifting Shackle
GRP-GPSQSUB
The Green Pin® Square Sunken Hole Bow Shackle (GPSQSUB) is made from Grade 6 high tensile steel, quenched and tempered for exceptional strength. Its hot-dip galvanised finish ensures long-term corrosion protection, while the square sunken hole design allows secure pin engagement. Certified to ISO 2415, BS EN 13889, ASME B30.26, and US Fed. Spec. RR-C-271, this shackle delivers a minimum breaking load of 6 × W.L.L., making it ideal for industrial lifting, rigging, and offshore operations.
From: £12.08£14.50 Exc VATInc VAT
Description
Engineered for reliability and safety, the Green Pin® Square Sunken Hole Bow Shackle (GPSQSUB) combines high tensile strength with precision engineering. Constructed from Grade 6 quenched and tempered steel, it offers robust performance in lifting and rigging applications up to a minimum breaking load of 6 × W.L.L. The shackle’s hot-dip galvanised finish ensures durability in harsh environments, including marine, industrial, and offshore conditions.
Designed to meet stringent international standards—ISO 2415, BS EN 13889, ASME B30.26—and US Fed. Spec. RR-C-271 Grade A, the GPSQSUB provides traceable performance with full certifications (2.1, 3.1, DoC). The supplied key (E-4170) facilitates easy pin removal, enhancing operational efficiency. Temperature tolerance ranges from –20°C up to +200°C, making it versatile for a wide range of industrial and offshore lifting scenarios.
Fully traceable with CE marking, W.L.L., manufacturer ID, material grade, and serial number, this shackle is available in multiple configurations to match different lifting capacities and applications.
Technical information
| Weight | N/A |
|---|---|
| WLL | 12t, 17t, 2t, 3.25t, 4.75t, 6.5t, 8.5t, 9.5t |
| Product Type | Bow Shackle |
| Grade | 6 |
