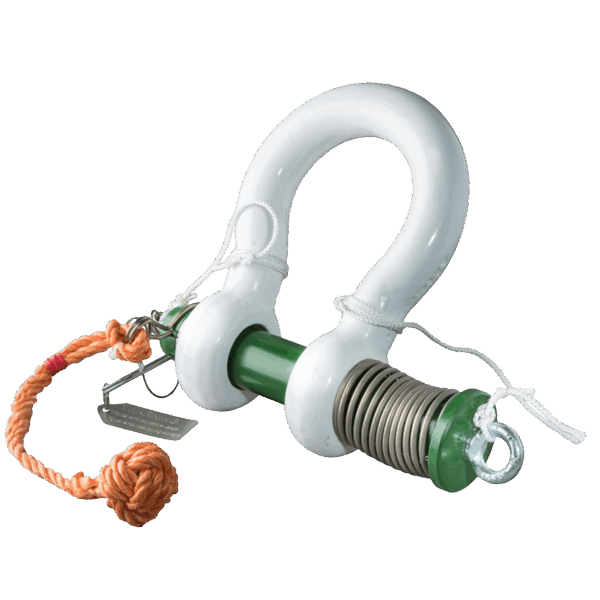

Green Pin® Spring Release ROV Shackle – GPROV5367, Grade 8 Polar Alloy Steel Offshore Subsea Shackle
GRP-GPROV5367
The Green Pin® Spring Release ROV Shackle (GPROV5367) is a high-strength Grade 8 polar alloy steel shackle engineered for offshore and subsea lifting applications. Featuring a spring release system, polar-grade material, and 5:1 safety factor, it is the trusted choice for ROV operations in demanding low-temperature marine environments.
From: £468.40£562.08 Exc VATInc VAT
Description
The Green Pin® Spring Release ROV Shackle – GPROV5367 is designed specifically for ROV-operated offshore lifting and subsea handling. Manufactured from Grade 8 polar quality alloy steel, the shackle ensures outstanding performance and reliability in temperatures from –40°C to +200°C.
Each unit features a spring release mechanism, allowing remote operation by an ROV (Remotely Operated Vehicle) for safe engagement and release in deep-water environments. The white-painted body and green-painted pin provide clear underwater visibility, while the 5:1 safety factor guarantees strength and reliability under extreme load conditions.
From 42.5t to 150t W.L.L., the shackle is assembled with wire rope slings and a monkey’s fist to support ROV handling. A special compression tool (sold separately) is required for assembly. Full CAD files are available on request for system integration and project planning.
The GPROV5367 conforms to ASME B30.26 and comes with full traceable certification including 2.1, 3.1, DoC, and LROS, making it suitable for critical offshore, subsea, and oil & gas lifting operations.
Design Code: P-5367
Technical information
| Weight | N/A |
|---|---|
| WLL | 120t, 12t, 13.5t, 150t, 17t, 25t, 35t, 42.5t, 55t, 85t |
| Product Type | Bow Shackle |
| Grade | 8 |
