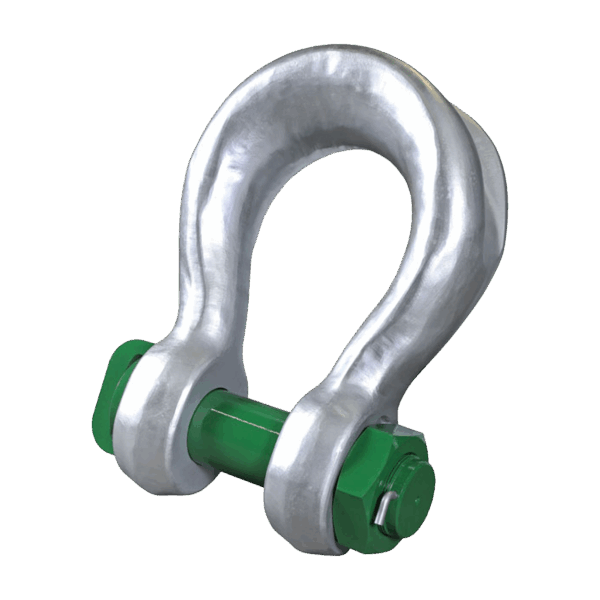

Green Pin® Sling Shackle Bow Type with Safety Nut and Bolt Pin – GPSL, Grade 8 Alloy Steel Heavy Lifting Shackle
GRP-GPSL
The Green Pin® Sling Shackle Bow Type with Safety Nut and Bolt Pin (GPSL) delivers dependable performance in heavy-duty lifting applications. Made from Grade 8 quenched and tempered alloy steel, it offers superior strength, precision tolerances, and a robust finish suited for extreme environments. Available with hot-dipped galvanised or painted finishes depending on size, each shackle ensures safety and durability, conforming fully to ASME B30.26. With a 5:1 safety factor, it’s ideal for industrial, marine, and offshore lifting operations.
Price on request
Description
The Green Pin® Sling Shackle Bow Type with Safety Nut and Bolt Pin (GPSL) is a high-capacity lifting component engineered for safety, reliability, and compliance with global lifting standards. Fabricated from Grade 8 alloy steel, both the body and pin are quenched and tempered for exceptional mechanical strength and resilience under heavy loads.
Shackles up to 55 tonnes are hot-dipped galvanised for enhanced corrosion protection, while shackles 75 tonnes and above feature a silver-painted body and green-painted pin for increased durability and visibility.
Each GPSL shackle maintains a minimum breaking load of 5 × W.L.L. and operates reliably between –20°C and +200°C. With a 5% forging tolerance on internal width and length, the GPSL range provides exceptional dimensional consistency across lifting applications.
Fully compliant with ASME B30.26, each shackle is traceable and supplied with full certification options including 2.1, 3.1, DoC, LROS, MPI, and US. This makes the GPSL range a trusted choice for heavy lifting across construction, offshore, and industrial operations.
Technical information
| Weight | N/A |
|---|---|
| WLL | 12.5t, 125t, 150t, 18t, 200t, 250t, 300t, 30t, 400t, 40t, 500t, 55t, 600t, 75t, 7t |
| Product Type | Bow Shackle |
| Grade | 8 |
