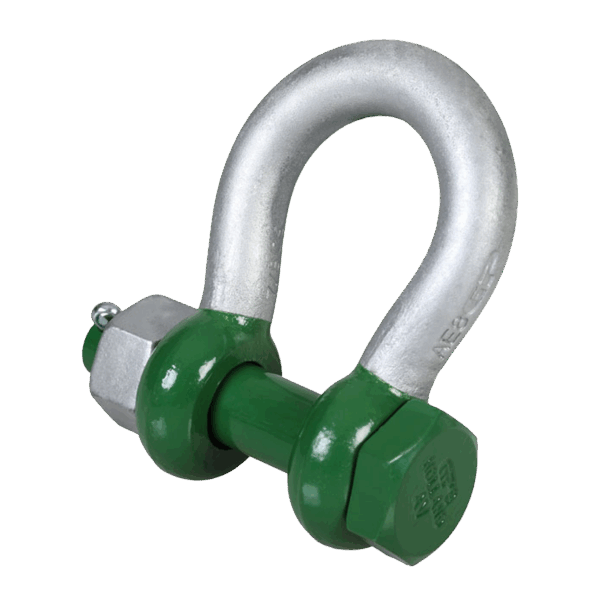

Green Pin Polar® Bow Shackle with Safety Nut and Bolt Pin – GPPOL, Grade 8 Alloy Steel Arctic Temperature Lifting Shackle
GRP-GPPOL
The Green Pin Polar® Bow Shackle with Safety Nut and Bolt Pin (GPPOL) is engineered for extreme cold environments, maintaining full strength down to –60°C. Made from Grade 8 quenched and tempered alloy steel, it delivers exceptional reliability and safety in subzero lifting conditions. With a hot-dip galvanised finish, 7:1 safety factor, and compliance with ASME B30.26, BS EN 13889, and US Fed. Spec. RR-C-271 Type IVA, this shackle is ideal for Arctic, offshore, and cold-weather operations.
From: £13.31£15.97 Exc VATInc VAT
Description
The Green Pin Polar® Bow Shackle with Safety Nut and Bolt Pin (GPPOL) sets the standard for high-performance lifting in freezing and polar conditions. Designed from Grade 8 quenched and tempered alloy steel, each shackle provides outstanding strength, ductility, and impact resistance even in temperatures as low as –60°C.
The hot-dip galvanised finish ensures long-term corrosion resistance, while the bolt-type pin with safety nut provides secure load fastening in critical operations. Every GPPOL shackle conforms to BS EN 13889 (0.5–25t), ASME B30.26, and meets the performance requirements of US Fed. Spec. RR-C-271 Type IVA, ensuring full global compliance for industrial and offshore lifting.
With a minimum breaking load of 7 × W.L.L., these shackles deliver unmatched safety margins, making them the trusted choice for Arctic logistics, wind energy, and offshore oil & gas applications.
Each shackle is marked with CE, W.L.L., manufacturer ID, material grade, and traceability code, ensuring total traceability. Full CAD files and certification packages (2.1, 3.1, DoC, DNV GL 2.7-1, DNV GL 0378) are available upon request.
Technical information
| Weight | N/A |
|---|---|
| WLL | 12t, 13.5t, 17t, 25t, 2t, 3.25t, 35t, 4.75t, 42.5t, 55t, 6.5t, 8.5t, 85t, 9.5t |
| Product Type | Bow Shackle |
| Grade | 8 |
