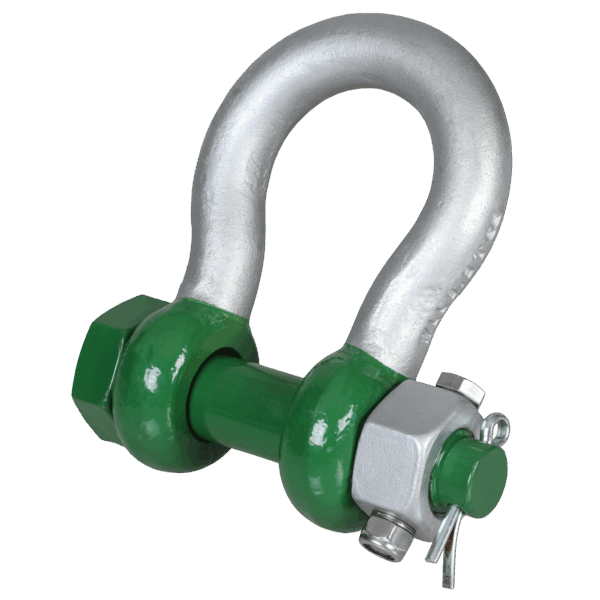

Green Pin Polar® Bow Shackle with Fixed Nut Safety Pin – GPPOLFN, Low-Temperature Grade 8 Alloy Steel Lifting Shackle
GRP-GPPOLFN
The Green Pin Polar® Bow Shackle with Fixed Nut Safety Pin (GPPOLFN) is engineered for safe lifting in extreme sub-zero conditions. Constructed from Grade 8 quenched and tempered alloy steel, it delivers high strength, exceptional toughness at –60°C, and superior vibration resistance thanks to its Nord-Lock® safety system and AISI 316 securing bolt.
From: £57.69£69.23 Exc VATInc VAT
Description
The Green Pin Polar® Bow Shackle with Fixed Nut Safety Pin (GPPOLFN) is the ultimate choice for lifting operations in arctic and low-temperature environments. Made from Grade 8 alloy steel, quenched and tempered for superior performance, it maintains full working load capacity down to –60°C, ensuring safety and reliability where standard shackles cannot perform.
Its hot-dip galvanised finish offers maximum corrosion resistance, while the fixed nut safety pin system provides outstanding protection against accidental loosening under dynamic load. Each unit incorporates an AISI 316 stainless-steel securing bolt drilled through both nut and pin, complemented by Nord-Lock® wedge-locking washers that prevent rotation and loss under vibration or shock loading.
The GPPOLFN series meets the highest international lifting standards, including ASME B30.26 and US Fed. Spec. RR-C-271, and carries a minimum breaking load 5× the W.L.L. for superior safety.
Certifications available: 2.1 | 3.1 | MTC | DoC | DNV GL 2.7-1
Design Code: G-5143 • CAD models available upon request
Technical information
| Weight | N/A |
|---|---|
| WLL | 12t, 13.5t, 17t, 25t, 2t, 3.25t, 35t, 4.75t, 42.5t, 55t, 6.5t, 8.5t, 85t, 9.5t |
| Product Type | Bow Shackle |
| Grade | 8 |
