Eepos One Industrial Modular Crane System – Single or Double Girder System (Up to 2000kg / 2t WLL)

Description

The eepos One Industrial Modular Crane System is a high-performance modular overhead crane designed to optimise workflow efficiency, reduce manual handling effort, and enhance internal material movement across industrial environments.

Manufactured using advanced aluminium crane profiles and modular components, this system enables safe, smooth, and precise lifting of loads up to 2,000 kg (2t WLL).

Ideal for manufacturing facilities, assembly lines, engineering workshops, and warehousing, the crane system provides reliable overhead lifting while maximising usable floor space and improving production flow.

Efficient Wide-Area Material Handling
Modular overhead crane systems are particularly effective where loads must be transported across large production areas or between multiple workstations.

The crane bridge travels along parallel runway tracks, allowing two-directional load movement, while the trolley and hoist provide a third axis of motion for precise positioning.

This configuration enables:
Efficient material transport across industrial halls
Improved workflow between workstations
Reduced manual handling risks
Faster throughput times

Such flexibility makes the eepos One Industrial Modular Crane System suitable for both continuous lifting operations and structured material handling tasks.

Lightweight Aluminium Construction for Smooth Operation
A major advantage of the eepos One system is its lightweight aluminium design, which significantly reduces rolling resistance and improves operator ergonomics.

The forged aluminium trolley features an eight-wheel configuration arranged across two running levels, maintaining constant contact with the crane profile.

Benefits include:
Exceptionally smooth load movement
Quiet system operation
Jam-free trolley travel
Reduced pulling force during manual operation

These characteristics make the system ideal for precision assembly environments and repetitive lifting applications.

Flexible Crane Movement and Automation Options
The modular crane bridge can be configured for manual, electric, or pneumatic movement, allowing businesses to select the most suitable level of automation.

This flexibility supports:
Manual industrial lifting operations
Powered material handling workflows
Semi-automated production processes
As operational requirements evolve, additional modules can be integrated to increase capacity and performance.

Integration with Monorail Transport Systems
The system can be combined with overhead monorail crane transport lines, allowing loads to be seamlessly transferred between long-distance transport routes and extended lifting coverage areas.

This integration enables:
Coordinated material flow across large facilities
Efficient movement between production zones
Improved internal logistics performance
Such combinations are valuable in complex industrial layouts.
Extended Reach with Telescopic Crane Bridges

For facilities requiring access to hard-to-reach areas, the modular crane can be equipped with telescopic bridge extensions.

These extensions allow:
Deeper load positioning within machinery zones
Improved accessibility in confined spaces
Enhanced flexibility in workstation layouts

This capability makes the system suitable for advanced industrial lifting applications.

Large Workspace Coverage
With bridge spans up to 14 metres, the eepos One Industrial Modular Crane System can cover extensive operational areas.

Multiple crane systems can also be installed within the same facility to support coordinated lifting operations across different production zones, improving overall workflow efficiency.

Fast Installation and Modular Expandability
Thanks to lightweight aluminium construction, the system can often be installed within existing ceiling structures without significant reinforcement.

Advantages include:
Faster installation timelines
Reduced disruption to production activities
Lower structural modification costs
Easy future expansion using modular components

Where required, dedicated steel support structures can be supplied to ensure safe installation.

Modular Crane Components
Aluminium crane bridge and runway profiles (XS to XXL sizes)
Forged aluminium trolley systems
Curved track sections and switching units
Energy supply systems and conductor lines
Ceiling suspension components
Optional steel support structures

These modular elements allow businesses to design fully customised industrial overhead lifting systems.

Safety Guidelines
Never exceed the maximum working load limit of 2,000 kg
Ensure installation is completed by qualified crane specialists
Operators must follow approved overhead lifting procedures
Perform routine inspections and maintenance of crane components
Maintain clear lifting zones during operation
Use only compatible hoists and certified lifting accessories

Typical Applications
Manufacturing production facilities
Automotive assembly lines
Engineering workshops
Warehousing and logistics centres
Packaging and distribution operations
Industrial material handling systems

Technical Specifications
Feature Specification
Maximum Working Load Limit Up to 2,000 kg (2t WLL)
Crane Type Aluminium Industrial Modular Crane System

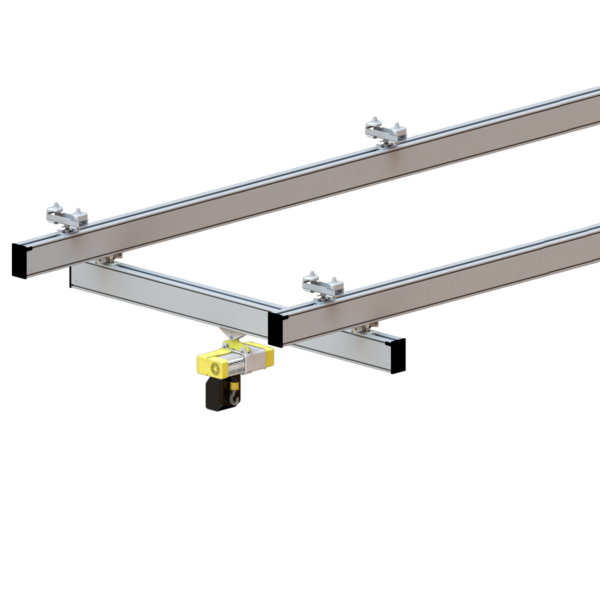

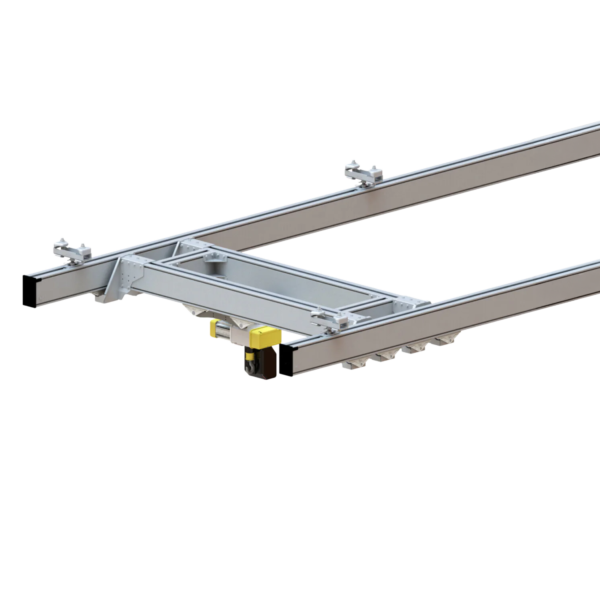

Crane Configurations Single Girder / Double Girder
Bridge Span Up to 14 m
Movement Manual / Electric / Pneumatic
System Integration Monorail Systems / Telescopic Cranes
Installation Ceiling-mounted or supported
