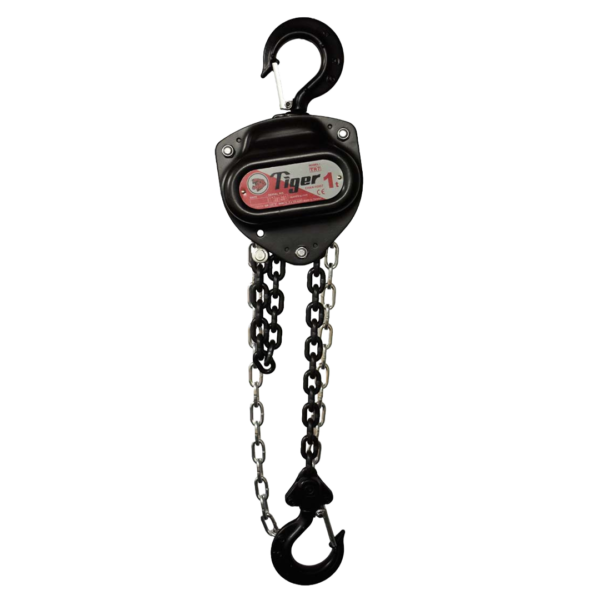

Tiger TRCB Heavy-Duty Manual Industrial Chain Block – WLL 500kg to 5 tonne
TIG-TRCB
The Tiger TRCB Industrial Chain Block is a premium-grade manual hoist engineered for safe and efficient lifting across industrial, marine, and construction environments. Combining precision-machined components, advanced brake efficiency, and full certification to global standards, the TRCB delivers exceptional durability, reliability, and operator control for heavy-duty lifting operations.
From: £101.25£121.50 Exc VATInc VAT
Description
The Tiger TRCB Industrial Chain Block represents the pinnacle of manual lifting performance, combining traditional manufacturing excellence with cutting-edge safety engineering. Designed for heavy-duty use across industrial, construction, offshore, and mining environments, the TRCB provides dependable lifting power and smooth operation in the harshest conditions.
Check out the full Tiger Range (click here)
Each TRCB chain block is fully certified and tested to exceed international standards including BS EN 13157:2004+A1:2009, ANSI/ASME B30.16, AS 1418.2, and SANS 1594. Every hoist is proof-tested at 1.5× its rated capacity and light-load tested at 2%, ensuring uncompromised safety and reliability in every application.
Tiger’s unique 8-point multi-start pinion shaft significantly improves brake response times, achieving up to 50% faster reaction than conventional designs. The instant-acting safety brake system securely holds the load whenever the operation stops, ensuring total control and safety during both lifting and lowering.
The TRCB uses only the highest quality Grade T or V alloy load chains, compliant with EN818-7 and ISO 16872, with optional stainless steel chains for marine or corrosive environments. The chain end stop can withstand at least 2.5× the rated capacity, preventing over-extension and enhancing operator safety.
With all major components heat-treated, precision-machined, and corrosion-protected, the TRCB delivers smooth mechanical efficiency and minimal physical effort during operation. The dual protective covers shield internal brake components from dust and debris, extending service life in challenging environments.

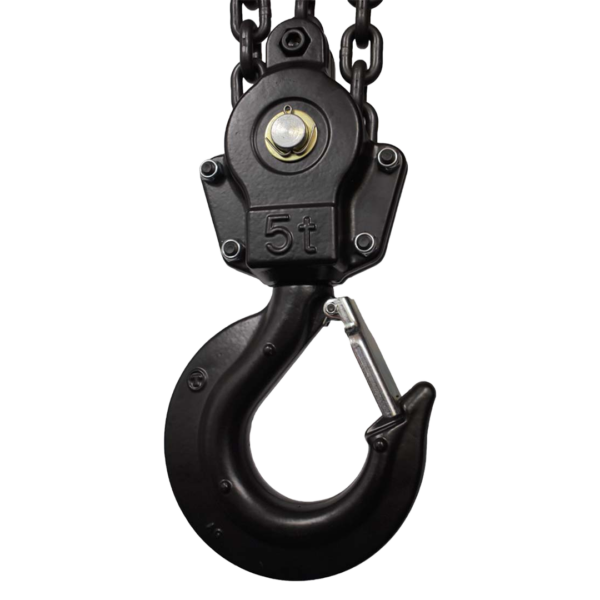

Tiger’s EZ Check hook system (Patent Pending) allows operators to easily inspect if the hoist has been shock-loaded or overloaded, simply by measuring between preset reference points. The drop-forged alloy hooks are equipped with heavy-duty latch kits that fully engage the hook nose for maximum security even during side loads.
The TRCB is designed for extreme temperature performance, operating flawlessly from -40°C to +50°C, thanks to premium-grade grease and precision lubrication. Finished with high-quality powder coating, it resists corrosion and maintains a professional appearance even under demanding use.
Each Industrial Chain hoist undergoes a comprehensive performance testing programme, including:
- Ultimate strength test (4× Working Load Limit)
- Continuous cyclic test (1,500+ lift cycles)
- Chain anchorage test (2.5× WLL)
- Proof and light load testing on every unit
Whether used in factories, workshops, offshore platforms, or construction sites, the Tiger TRCB Industrial Chain Block is built to perform safely and reliably day after day, lift after lift.
Technical information
| Weight | N/A |
|---|---|
| WLL | 1.5t, 1t, 2t, 3t, 5t, 500kg |
Key Features
- WLL Range: Available in multiple capacities for varied lifting applicationsCertification: BS EN 13157, ANSI/ASME B30.16, AS 1418.2, SANS 1594
- Brake Efficiency: 8-point multi-start pinion shaft for faster reaction and improved safety
- Safety Brake: Instant brake engagement securely holds the load when operation stops
- Load Chain: Grade T or V alloy chain (EN818-7 / ISO 16872 compliant); stainless steel option available
- Chain End Stop: Holds at least 2.5× rated capacity to prevent over-extension
- Temperature Range: -40°C to +50°C
- Construction: Precision-machined, heat-treated components for long-term smooth operation
- Protection: Dual covers protect the brake system from contaminants
- Hooks: Patent-pending “EZ Check” system for overload indication; drop-forged alloy hooks with recessed latch
- Finish: Durable powder coat for corrosion resistance
- Testing: Proof load 1.5× rated capacity; light load test 2%; ultimate strength 4× WLL
- Applications: Ideal for construction, manufacturing, marine, mining, and general industrial lifting
