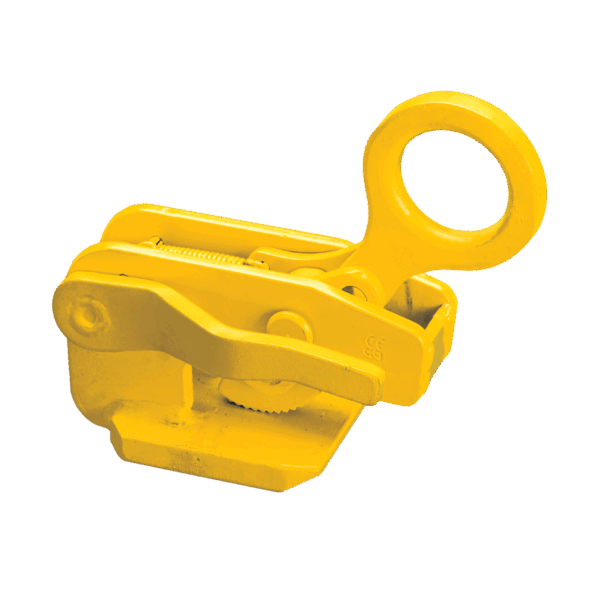

Camlok® THS Loading Horizontal Plate Clamps – 750kg to 1.5t WLL
CAM-HPC-THS
The Camlok THS Horizontal Plate Clamps are specially designed for loading plates horizontally into presses, guillotines, shears, and other machinery. They can be used individually for machine loading, or in pairs for horizontal transportation, with capacities from 750–1500 kg.
From: £489.87£587.84 Exc VATInc VAT
Description
The Camlok® THS Loading Horizontal Plate Clamps are engineered for applications where plates must be fed horizontally into industrial machinery such as presses, guillotines, shears, and processing equipment, ideal for operations where CH clamps are unsuitable.
A key advantage of the THS is its ability to be used individually when loading plate into machinery. When transporting plates horizontally, however, the clamps must be used in pairs.
The clamp features a spring-loaded safety lock that ensures the clamp remains securely attached to the plate during positioning, even before the load is fully engaged. This greatly improves operator safety when handling plates in tight or controlled environments.
The THS clamp range is suitable for material with a surface hardness up to 300 Brinell / 32 HRC, and offers working load limits (WLL) of 750 kg and 1500 kg. The lightweight but robust build ensures reliable performance in production, fabrication, and industrial processing environments.
The clamps are part of Product Group I2 and should be maintained only by trained personnel.
Technical information
| Weight | N/A |
|---|---|
| WLL | 1.5t, 750kg |
| Jaw Capacity (mm) | 0-20, 0-35 |
