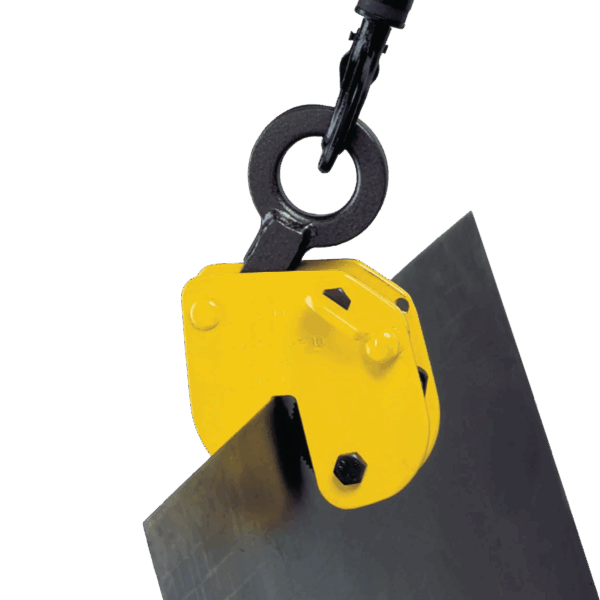

Camlok® HG High Grip Vertical Plate Clamp – 500kg WLL
CAM-VPC-HG-500
The Camlok HG High Grip Vertical Plate Clamp delivers extremely high clamping force, making it ideal for safely lifting vertical plates up to 500 kg and surfaces up to HRC 40/Brinell 375.
£524.44£629.33 Exc VATInc VAT
Description
The Camlok® HG High Grip Vertical Plate Clamp is engineered for demanding lifting applications requiring maximum grip. Designed to handle steel plates with a surface hardness up to HRC 40 / Brinell 375, this clamp ensures secure vertical lifting for loads between 25 and 500 kg.
The clamp is operated via a locking lever, with a safety lock spring that loads the cam jaw, preventing accidental opening even when no load is applied. Its robust construction provides exceptional reliability while maintaining ease of operation.
Serviceability is built into the design: parts are readily available and can be replaced with minimal effort, though repairs should only be performed by trained personnel. This ensures long-term performance and safety in industrial environments.
Ideal for steel fabrication, stockyards, construction, and maintenance operations, the HG clamp is perfect for lifting plates that require high gripping force without damage to the material. It belongs to Product Group I2 and complies with all relevant safety standards for industrial lifting.
Technical information
| Weight | 5 kg |
|---|---|
| WLL | 500kg |
