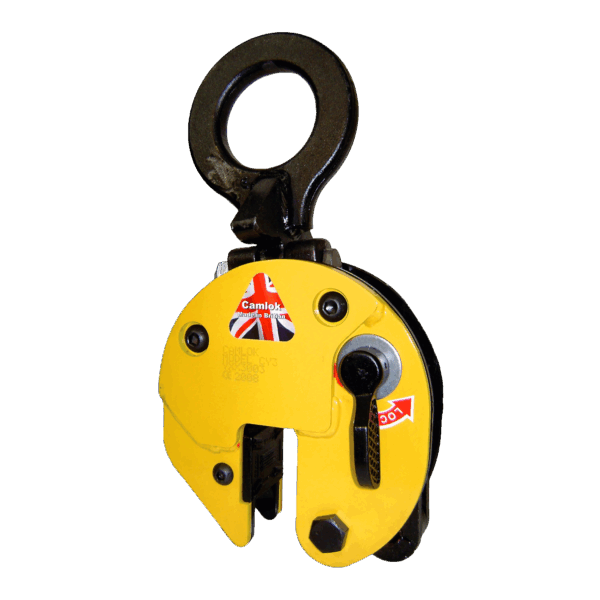

Camlok® CY Hinged Vertical Plate Clamp – 1t to 3t WLL

Description

The Camlok® CY Hinged Vertical Plate Clamp is a versatile lifting solution engineered for safe and efficient handling of steel plates, fabricated components, and welded constructions. Featuring a Working Load Limit (WLL) of 1,000 to 3,000 kg, this clamp stands out for its ability to securely lift loads at multiple angles, thanks to its innovative hinged hook ring design.

The hinged hook ring ensures that adequate clamping force is applied in any lifting position, significantly reducing the risk of slipping or clamp damage—even during two-leg lifting operations of large, flexible plates. This unique design feature also allows the CY clamp to be attached to a plate from virtually any direction, giving operators exceptional flexibility during rigging and lifting.

One of the key benefits of the CY Series is its ability to lift longer plates without requiring a spreader beam. When used in pairs with a two-leg chain sling, the hinged ring automatically adjusts to maintain optimum grip, providing consistent performance in multi-angle operations. This makes the CY clamp an efficient choice for workshops and construction sites handling long or awkward steel sections.

The clamp features a cam-operated closing mechanism for secure engagement, which can also be replaced with a chain-pull open/close mechanism if preferred. Its high-tensile steel jaws and precision-engineered geometry ensure strong, reliable clamping, while its swivelling hook ring allows attachment to the plate in virtually any orientation.

Designed with serviceability in mind, the CY hinged clamp includes easily accessible components and readily available spare parts. Repairs must be carried out by trained personnel to ensure continued compliance with safety standards.

With a 4:1 safety factor and classification under Product Group I2, the Camlok CY Hinged Vertical Plate Clamp delivers dependable, industrial-grade performance for lifting, rotating, and transferring steel plates between horizontal and vertical positions.

Important:

The material being clamped must have a hardness below HRC 30 / Brinell 300.

Must be used in pairs for safe and stable lifting.
