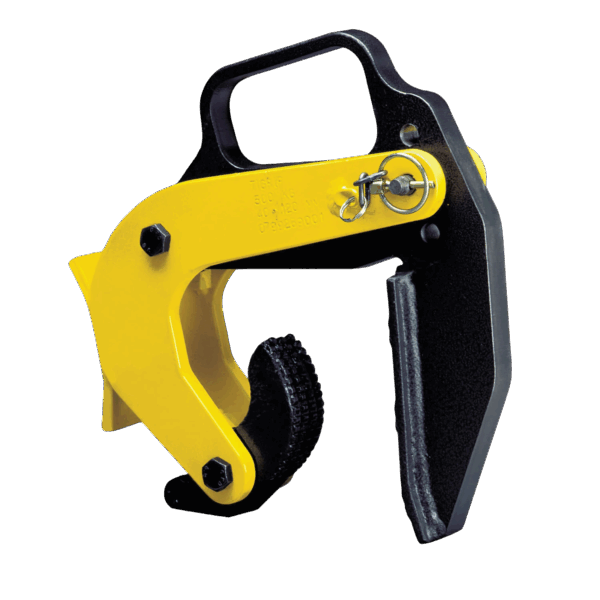

Camlok® BTG Concrete Pipe Lifting Clamps – 3-Leg Set with Chain Sling – 1.5-3t WLL
CAM-CPL-BTG
The BTG Concrete Pipe Lifting Clamps are engineered for the safe vertical lifting of concrete pipe sections up to 2000 mm in diameter. Each set includes three lifting clamps and a matched 3-leg chain sling, available in 1500 kg and 3000 kg capacities for demanding site conditions.
From: £737.06£884.47 Exc VATInc VAT
Description
The BTG Concrete Pipe Lifting Clamp Set provides a dependable and efficient solution for lifting and transporting large concrete pipe sections on construction and civil engineering sites. Sold as a complete set of three clamps, each BTG unit is supplied with a 3-legged chain sling, ensuring immediate readiness for safe vertical handling.

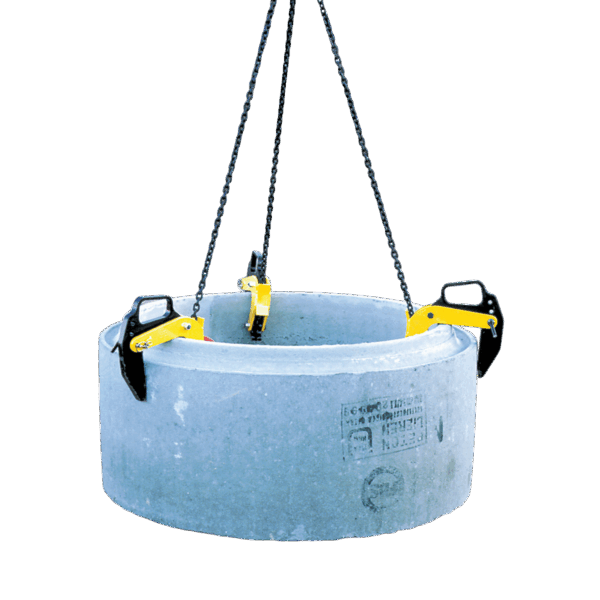

Designed to lift concrete pipes with diameters up to 2000 mm, these clamps feature a straightforward, user-friendly attachment and release mechanism. Operators can quickly secure the clamps to the pipe edge, allowing for smooth and controlled vertical lifting during installation or relocation.
Built for tough working environments, the BTG series incorporates a robust steel body, large jaw capacities, and a high 4:1 safety factor. The lightweight yet solid design maximises strength while maintaining easy manual handling. With jaw capacities of up to 180 mm and substantial mouth and pressure depth measurements, these clamps deliver versatility across a wide range of pipe sizes.
Available in 1500 kg and 3000 kg Working Load Limits (WLL), the BTG lifting clamp set is suitable for utility contractors, drainage installation, civil engineering projects, and precast concrete handling.
Technical information
| Weight | N/A |
|---|---|
| WLL | 1.5t, 3t |
| Jaw Capacity (mm) | 40-120, 50-180 |
