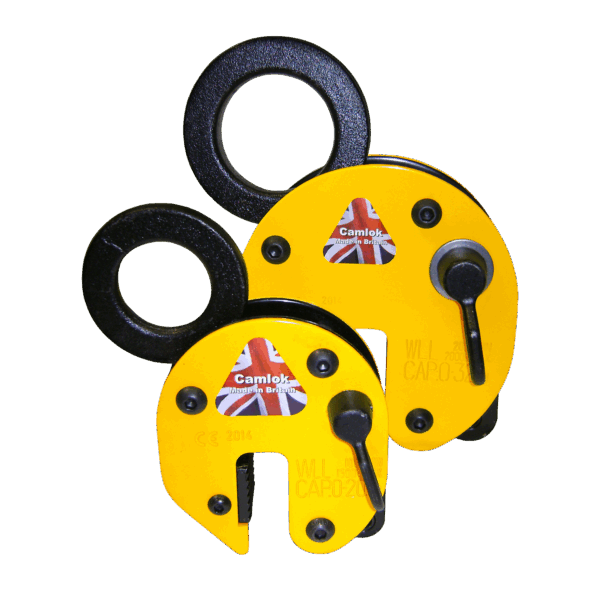

Camlock 92 Series Standard Plate Clamps – 500kg – 3000kg WLL

Description

The Camlok® 92 Series Plate Clamps are high-performance lifting solutions designed for safe vertical handling and controlled 180° rotation of sheet steel, plate stock, profiles, and fabricated components. Built around Camlok’s proven mechanical locking and self-actuating gripping system, these clamps deliver exceptional safety, load security, and long-term reliability for demanding industrial lifting applications.

Models up to 500 kg feature a positive spring-loaded cam for fast, automatic engagement, while larger models utilise a locking lever mechanism for precise opening and closing. In all variations, a spring-loaded safety lock prevents accidental jaw opening, even when the clamp is not under load.

The clamp’s self-actuating cam design ensures a secure hold throughout the lift. A spring provides the initial bite on the material; if any slippage occurs, the cam rotates with the plate, increasing clamping pressure automatically. The sloping-slot design enhances grip when the clamp is used from the horizontal position—an advantage over many alternative clamp types.

Manufactured with high-tensile steel jaws and pads, the 92 Series offers exceptional strength and durability. The bolted-body construction allows easy access for inspection, servicing, and part replacement, helping reduce maintenance costs and downtime. The ergonomically shaped cam handle ensures comfortable handling, even with protective gloves.

All models are service-friendly, with individual replacement parts and full repair kits available. Repairs can be performed at the factory or by certified, competent technicians.

Suitable for vertical lifting, rotating plates through 180°, and handling steel fabrications, the Camlok 92 Series Plate Clamps provide a dependable, cost-effective solution for manufacturing, steel production, construction, and industrial lifting operations.
